StoneFly Unified Scale Out (USO™) Converged Storage Appliance
Setup SAN and NAS + Cloud Object Storage in a Single, Easy-to-Manage, and Highly Scalable Converged Unified Storage Platform.
StoneFly USO™: The Scalability of Enterprise NAS, Powered by the Performance of SAN, and Supported by the Economy of Cloud Object Storage.
StoneFly USO: Unified Storage Platform with iSCSI Capable NAS & Cloud Object Storage
Manage, control and store file-level, block-level and object-level business data with a single unified storage platform. StoneFly USO provides on-premises storage for common SAN and NAS protocols and facilitates integration with cloud storage tiers for object storage.
Instead of configuring dedicated hardware infrastructure for different business data, businesses can leverage StoneFly USO’s unified storage platform and setup one box for a variable range of storage requirements.
StoneFly USO’s flexible and adaptable architecture makes it the best fit for mid-range and large organizations for a variety of applications and use-cases.
Integrated Enterprise Features of Our Hyperscale Converged Storage
Infrastructure
StoneFly USO delivers optimized data storage experience to the enterprise user. Users can integrate a number of enterprise features and data services with our converged storage infrastructure to facilitate high availability, business continuity, storage efficiency and overall cost effectiveness.
Here’s a list of the integrated enterprise features of our hyperscale converged storage infrastructure:
Encryption – AES 256-bit & SSL/TLS Tunneling
Secure data at rest with AES 256-bit encryption and data at transit with SSL/TLS tunneling.
Data Deduplication
Reduce copies of data, optimize data storage utilization rates and enhance cost effectiveness of converged storage infrastructure with data deduplication.
Synchronous & Asynchronous Replication
Configure real-time or scheduled replication jobs to create redundant copies of enterprise data for high availability and business continuity.
Image-based Snapshot
Prevent data loss, data corruption, and protect mission-critical applications from ransomware with point-in-time image-based snapshots; configurable on-premises and in the cloud..
Thin Provisioning
Speed-up storage provisioning for applications and make the most of your unused storage resources.
.
Erasure Coding
Enhance appliance fault tolerance by fractioning data and creating dispersed volumes across storage media.
Automated Storage Tiering
Define policies and automate data transfers between on-premises, offsite and cloud storage repositories for efficient and error-free data storage management.

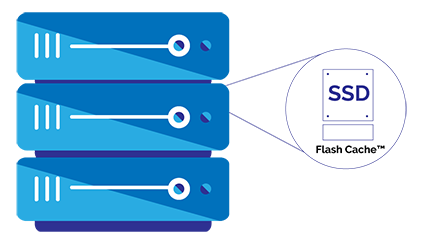

Flash Cache™
Enhance read and write speeds and data accessibility by configuring flash drives as front-end cache with our unique Flash Cache technology.
Configure Hybrid Converged NAS with iSCSI Support (HDDs & SSDs)
StoneFly USO can be configured as a hybrid NAS with iSCSI storage solution. Users can add enterprise hard drives for long term and high capacity data storage and Flash / SSDs for high performance frequently accessed business data.
Integrated automated storage tiering will enhance storage utilization rates, compliment data management, and improve the cost effectiveness of the enterprise data storage solution.
Cloud-Enabled NAS with iSCSI Storage Solution

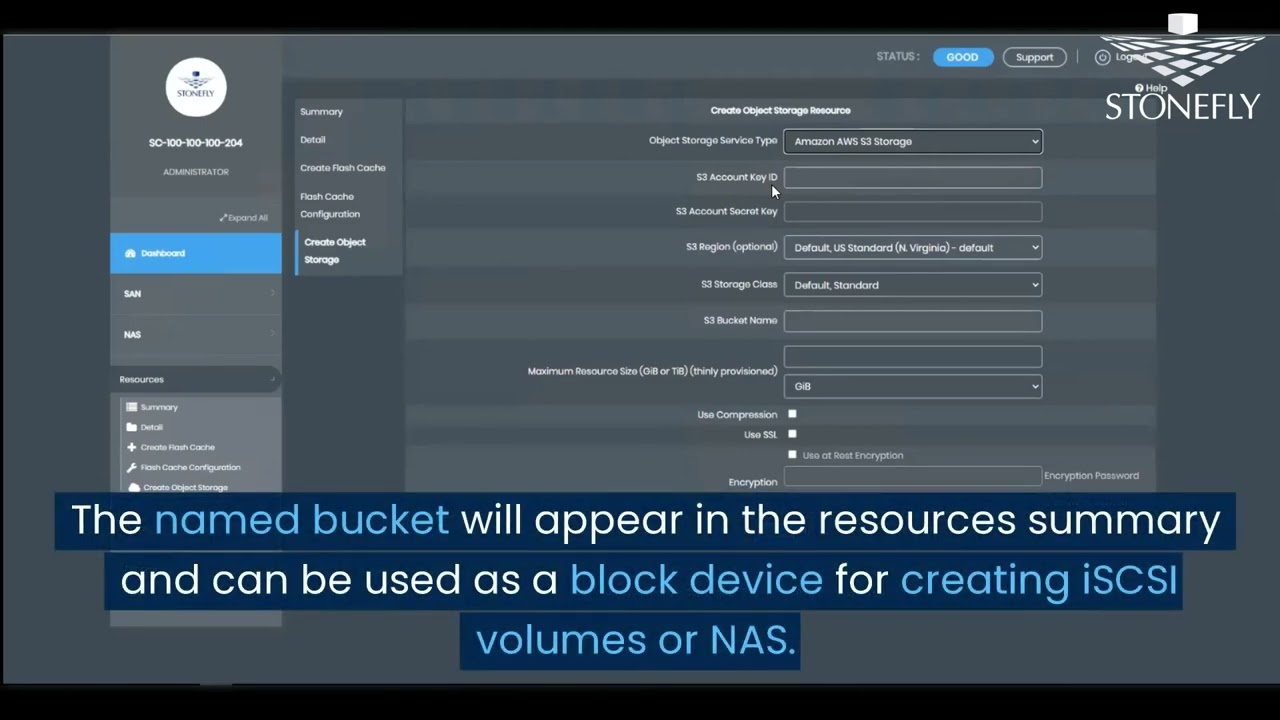

Users can leverage the pre-installed StoneFusion software to setup a virtual cloud gateway to Azure, AWS, StoneFly and other S3 compatible public clouds. The integration of cloud technology facilitates greater scalability, redundancy, data mobility, and cost effectiveness.
Businesses can setup backup repositories in the cloud, configure replication for additional redundancy or integrate cloud archive tiers for long term data retention with the built-in cloud gateway features of StoneFly USO unified storage system.
Single Centralized Interface for SAN and NAS + Cloud Object Storage Management
StoneFly USO unified storage systems are pre-configured with StoneFusion software-defined storage solution. Businesses can manage, control and monitor their NAS, iSCSI, and object storage resources using a user-friendly and easy-to-use GUI. Businesses can integrate enterprise-level data services, monitor storage space consumption, and configure email reports with StoneFly StoneFusion software.
Redundant & Fault Tolerant Converged Storage Infrastructure
StoneFly USO unified storage systems are highly redundant, hot-swappable, efficient and modular hardware. Dynamically add or remove drives or power supplies by leveraging the modular and hot-swappable infrastructure in a disruption-free process with minimum time delay.
The redundant architecture ensures business continuity for enterprise environments and high end enterprise workloads and applications.
Configure Reliable & Fault Tolerant Hyperscale Converged NAS with iSCSI and Object Storage for Your Enterprise Workloads Today
StoneFly USO Converged Storage Hardware Configurations
StoneFly USO appliances are available in the following hardware configurations:
- Integrated Converged Storage Appliance
- Dual Node Shared Nothing Converged Storage Appliance
- Scale Out Converged Storage Appliance
- High Availability (USO-HA™) Disaggregated Converged Storage Appliance
StoneFly USO – Integrated Converged Storage Appliance
The integrated appliance configuration is a single, easy-to-manage, simple-to-use storage box with SAN and NAS + cloud object storage.
The integrated USO appliance has the storage controller, RAID controller, and the storage drives consolidated into a single appliance. The appliance is highly scalable, and is pre-configured with StoneFusion™ software.
It can be integrated with cloud storage tiers as a hybrid appliance and can be scaled with expansion units.
StoneFly USO integrated appliance configuration provides storage capacities from Terabytes to Petabytes.
Highly Scalable Integrated Unified Storage Platform
By adding appliance nodes, enterprise users can scale out performance and storage capacity. StoneFly USO unified storage platform is capable of scaling out to virtually unlimited number of appliance nodes for storage capacities ranging from terabytes to petabytes.
With each new integrated appliance node added to the system, users add more processors and storage drives, hence increasing not just storage capacity but also the ability to compute stored data. While StoneFly software-defined solution: StoneFusion™ makes management simpler across all nodes with the centralized management and aggregates workloads over the total number of appliance nodes.
The additional compute capacity and workload aggregation boosts the storage infrastructure’s ability to deliver high speed read and write experience for high density enterprise workloads.
Interested in StoneFly USO Integrated Appliance Hardware Specifications?
StoneFly USO – Dual Node Shared Nothing Converged Storage Appliance
StoneFly Dual Node Shared Nothing converged storage appliances are suitable for enterprises with high availability requirements.
The Dual Shared Nothing hardware configuration comprises of two mirrored integrated converged storage appliances. These appliances leverage replication technology to deliver redundancy and high availability.
Each appliance has hardware independent components and storage drives. This makes sure that even in the event of complete hardware failure, the user does not experience disruption, downtime, and data loss.
The primary appliance is setup on-premises whereas the secondary or mirrored converged storoage appliance can be setup on-site or at a remote offsite location.
This storage setup is built for organizations with sensitive and confidential data with the need to comply to industry regulations. Examples of such data include insurance data, patient data, surveillance footage, etc.
Dual Node Shared Nothing Unified Storage System Architecture
Each appliance node in the Dual Node Shared Nothing architecture has their own Storage Controller (SC), RAID controller, storage drives, power supplies, CPUs, etc. This makes the Dual Node Shared Nothing hardware reliable, redundant, and fault-tolerant.
Even if a SC fails, a RAID controller fails, or a drive or a bunch of drives fails, the user does not experience downtime or data loss because the secondary appliance continues to operate.
The Dual Node Shared Nothing hardware configuration is most suitable for organizations that need the assurance that their data will always be available.
Dual Node Shared Nothing Converged Storage Appliance Scalability
When fully populated, the Dual Node Shared Nothing converged storage appliances can store up to petabytes of enterprise data.
StoneFly’s state of the art technology enables the Dual Node Shared Nothing appliances to scale up (increase storage capacity) and scale out (increase storage capacity and performance) without limits.
- To scale up users can add expansion units. Expansion units are available from 12-bay to 108-bay with support for enterprise SAS and SSDs.
- To scale out users can add virtually unlimited number of integrated converged storage appliance nodes. Each appliance node has their own processors and storage drives. Therefore, with each appliance node, the compute capabilities and storage capacities of the storage system increase and the workload is aggregated across the total number of nodes in the system.
Each USO integrated appliance node is capable of supporting a maximum of 256 drives with expansion units.
Interested in StoneFly USO Dual Node Shared Nothing Hardware Specifications?
StoneFly USO – Scale Out Converged Storage Appliance
The USO scale out hardware configuration starts with at least three integrated appliance nodes. When fully populated, the converged storage system is capable of storing petabytes of NFS, CIFS/SMB, and iSCSI workloads.
Each appliance node in the scale out configuration has built-in storage controller, RAID controller, and storage drives. This implies that the scale out configuration starts with 3x compute and storage capacity than the USO integrated converged storage.
The overall workload volume is aggregated over the total number of nodes in the system. With features like RAID and erasure coding, users can also setup high levels of software and hardware fault-tolerance.
Our USO scale out configuration is purpose-built for enterprise environments that process high density volumes of continuously growing data. Example use-cases include IoT, AI, machine learning, DNA analysis, data analytics, and more.
Scale Out Converged Storage Appliance Scalability
The USO scale out configuration is purpose-built to scale on-demand. It’s capable of scale up (increased storage capacity) and scale out (increased storage capacity and performance).
Add Storage Capacity
To add storage capacity, users can add expansion units. Expansion units are available from 12-bay to 108-bay with support for enterprise SAS, SSDs, or combination of both. Each integrated converged appliance is capable of supporting 256 drives with expansion units.
Add Performance & Storage Capacity
To scale out users can add converged storage appliance nodes to the system. Each appliance node has built-in processors and storage drives. With the addition of each appliace node the ability to compute data and store increases many folds. The total enterprise workload is aggregated across the total number of appliance nodes in the system.
This means, that unlike traditional storage systems, StoneFly’s scale out configurations deliver more compute and performance as the system grows.
Interested in StoneFly USO Scale Out Hardware Specifications?
Available StoneFly Unified Storage Appliance Series
Choose from a range of value-tier, mid-tier and enterprise-tier unified appliances & build your storage system as per your requirements and budget. Available StoneFly USO appliance series include:
- I-Series (Value-Tier Unified Appliances for SMBs)
- D-Series (Mid-Tier Unified Appliances for SMEs)
- XS-Series (Enterprise Single Xeon Unified Appliances)
- XD-Series (Enterprise Dual Xeon Unified Appliances)
Unified Storage Appliances: I-Series
USO I-Series Hardware Specifications
- Quad-Core (Standard) to Octa-Core (Optional) 9th Gen Intel Processors
- 8GB (Standard) to 64GB (Optional) System Memory
- Built-in Hardware RAID Controller
- Up to 2 Additional PCI-E Slot for Optional Network Card Upgrades with Support for 1Gb RJ-45, 10Gb RJ-45, SFP+, CS4, SR Optical, LR Optical, & 40Gb QSFP+ ports (8-bay or higher)
- Redundant High-Efficiency Hot-Swappable Power Supplies
Note: Supported components & upgrade options may vary depending on USO appliance model. For details, contact StoneFly sales.
4-bay 6Gb SATA Compact Cube/Mini-Tower
4-bay 6Gb SATA 1U Rackmount
6-bay 6Gb SATA 2U Rackmount
8-bay 12Gb SAS 2U RAckmount
12-bay 12Gb SAS 2U Rackmount
16-bay 12Gb SAS 3U Rackmount
24-bay 12Gb SAS 4U Rackmount
36-bay 12Gb SAS 4U Rackmount
Unified Storage Appliances: D-Series
USO D-Series Hardware Specifications
- Quad-Core (Standard) to 16-Core (Optional) Xeon Processor
- 32GB (Standard) to 128GB (Optional) System Memory
- Built-in 12Gb SAS Hardware RAID Controller with RAID Cache Battery Backup with RAID 0, 1, 3, 5, 6, 10, 30, 50, & 60 support
- 256GB (Standard) to 3.8TB (Optional) SSD for OS
- Redundant High-Efficiency Hot-Swappable Power Supplies
Note: Supported components & upgrade options may vary depending on USO appliance model. For details, contact StoneFly sales.
4-bay 6Gb SATA Compact Cube/Mini-Tower
4-bay 6Gb SATA 1U Rackmount
6-bay 6Gb SATA 2U Rackmount
8-bay 12Gb SAS 2U RAckmount
12-bay 12Gb SAS 2U Rackmount
16-bay 12Gb SAS 3U Rackmount
24-bay 12Gb SAS 2U Rackmount (2.5″)
24-bay 12Gb SAS 4U Rackmount (3.5″)
36-bay 12Gb SAS 4U Rackmount
Unified Storage Appliances: XS-Series
USO XS-Series Hardware Specifications
- 10-Core (Standard) to 28-Core (Optional) Xeon Processor
- 32GB (Standard) to 512GB (Optional) System Memory
- 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
- Built-in 12Gb SAS Hardware RAID Controller with RAID Cache Battery Backup with RAID 0, 1, 3, 5, 6, 10, 30, 50, & 60 support
- Redundant High-Efficiency Hot-Swappable Power Supplies
Note: Supported components & upgrade options may vary depending on USO appliance model. For details, contact StoneFly sales.
8-bay 12Gb SAS 2U Rackmount
12-bay 12Gb SAS 2U Rackmount
16-bay 12Gb SAS 3U Rackmount
24-bay 12Gb SAS 2U Rackmount (2.5″)
24-bay 12Gb SAS 4U Rackmount (3.5″)
36-bay 12Gb SAS 4U Rackmount
Unified Storage Appliances: XD-Series
USO XD-Series Hardware Specifications
- Dual 10-Core (Standard) to Dual 28-Core (Optional) Xeon Processor
- 64GB (Standard) to 1TB (Optional) System Memory
- 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
- Built-in 12Gb SAS Hardware RAID Controller with RAID Cache Battery Backup with RAID 0, 1, 3, 5, 6, 10, 30, 50, & 60 support
- Redundant High-Efficiency Hot-Swappable Power Supplies
Note: Supported components & upgrade options may vary depending on USO appliance model. For details, contact StoneFly sales.
8-bay 12Gb SAS 2U Rackmount
12-bay 12Gb SAS 2U Rackmount
16-bay 12Gb SAS 3U Rackmount
24-bay 12Gb SAS 2U Rackmount (2.5″)
24-bay 12Gb SAS 4U Rackmount (3.5″)
36-bay 12Gb SAS 4U Rackmount
Add More Storage Capacity to Your Integrated Unified Storage Platform
StoneFly USO integrated hardware supports storage expansion units. Users can add Terabytes of storage capacity comprising of enterprise SAS, SSD, or combinations of both.
The expansion process is disruption-free and our StoneFusion software takes care of the integration process.
Here’s a list of available expansion units:
- 12-bay 3.5” 2U 12Gb SAS Expansion Unit
- 16-bay 3.5” 3U 12Gb SAS Expansion Unit
- 24-bay 3.5” 4U 12Gb SAS Expansion Unit
- 24-bay 2.5” 2U 12Gb SAS Expansion Unit
- 44-bay 3.5″ 4U 12Gb SAS Expansion Unit
- 60-bay 3.5″ 4U 12Gb SAS Expansion Unit
Note: USO I-Series appliances only support scale out. The I-Series appliances do not support storage expansion unit integration. For details, contact StoneFly pre-sales engineers.
12-bay 3.5″ 2U 12Gb SAS Expansion Unit
16-bay 3.5″ 3U 12Gb SAS Expansion Unit
24-bay 3.5″ 4U 12Gb SAS Expansion Unit
24-bay 2.5″ 2U 12Gb SAS Expansion Unit
Build Your Unified Storage Platform Today
StoneFly USO-HA & USO-FC High Availability (HA) Disaggregated
Converged Storage Appliance
StoneFly converged storage appliance is available as USO-HA and USO-FC high availability cluster appliances.
- USO-HA uses 12Gb SAS-attached high availability RAID subsystems.
- USO-FC uses Fibre Channel (FC) – attached high availability RAID subsystems.
Both USO-HA and USO-FC cluster appliances have at least 2 x 1U storage controllers and 1 x RAID subsystem. The converged storage cluster appliance infrastructure is highly redundant and dually scalable. Enterprise users can choose to add performance by adding compute units or storage controllers or add storage capacity by adding expansion units or they can also choose to add appliance nodes which increase both performance and storage capacity.
StoneFly USO-HA & USO-FC: Disaggregated Architecture
Dually Scalable Unified Storage Platform
The USO-HA unified converged storage systems are highly scalable. Enterprise users can choose to add more storage capacity, performance or both.
To add more performance, users can add storage controllers.
For more storage capacity, users can add expansion arrays and expansion units.
To add both performance and storage capacity, users can add appliance nodes.
StoneFly unified converged platforms are capable of scaling out to virtually unlimited number of appliance nodes, making them the best fit for enterprise use-cases such as genome research environments, local governments, HPC (High Performance Compute) environments, and many more.
Available Disaggregated Unified Storage Appliance Models
Choose from a range of value-tier, mid-tier and enterprise-tier unified storage appliances & build your HA cluster unified storage system as per your requirements and budget. Available StoneFly USO-HA & USO-FC appliance series include:
- I-Series (Value-Tier Unified Appliances for SMBs)
- D-Series (Mid-Tier Unified Appliances for SMEs)
- XS-Series (Enterprise Single Xeon Unified Appliances)
- XD-Series (Enterprise Dual Xeon Unified Appliances)
USO-HA & USO-FC Appliances: I-Series
2 x 2U Storage Controller
- Quad-Core (Standard) to Octa-Core (Optional) 9th Gen Intel Processor
- Up to 1 Additional PCI-E slot for Optional Network Card and/or HBA for HA Expansion Upgrades with Support for 1Gb RJ-45, 10Gb Rj-45, SFP+, CX4, SR Optical, LR Optical, 40Gb QSFP+, 12Gb SAS
- Support upto 1776 SAS drives or SSDs with EBODs
- 8GB per Node (Standard) to 64GB per node (Optional) System Memory
- 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
Note: USO-HA & USO-FC cluster appliances have 2 x storage controllers + one or more HA RAID arrays. The supported I-Series HA RAID arrays are listed under.
For customization options, contact StoneFly sales.
USO-HA & USO-FC Appliances: D-Series
2 x 2U Storage Controller
- Quad-Core (Standard) to 16-Core (Optional) Xeon Processor
- Support upto 1776 SAS drives or SSDs with EBODs
- 32GB per Node (Standard) to 128GB per node (Optional) System Memory
Note: USO-HA & USO-FC cluster appliances have 2 x storage controllers + one or more HA RAID arrays. The supported D-Series HA RAID arrays are listed under.
For customization options, contact StoneFly sales.
USO-HA & USO-FC Appliances: XS-Series
2 x 1U Storage Controller
- Choice of 2 x 12Gb SAS Ports or 2 x 16Gb FC Ports for HA RAID Arrays
- 10-Core (Standard) to 28-Core (Optional) Xeon Processor
- Support upto 1776 SAS drives or SSDs with EBODs
- 32GB per Node (Standard) to 512GB per node (Optional) System Memory
- 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
2 x 2U Storage Controller
- Choice of 2 x 12Gb SAS Ports or 2 x 16Gb FC Ports for HA RAID Arrays
- 10-Core (Standard) to 28-Core (Optional) Xeon Processor
- Support upto 4440 SAS drives or SSDs with EBODs
- 32GB per Node (Standard) to 512GB per node (Optional) System Memory
- 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
Note: USO-HA & USO-FC cluster appliances have 2 x storage controllers + one or more HA RAID arrays. The supported XS-Series HA RAID arrays are listed under.
For customization options, contact StoneFly sales.
USO-HA & USO-FC Appliances: XD-Series
2 x 1U Storage Controller
- Choice of 2 x 12Gb SAS Ports or 2 x 16Gb FC Ports for HA RAID Arrays
- Dual 10-Core (Standard) to Dual 28-Core (Optional) Xeon Processor
- Support upto 1776 SAS drives or SSDs with EBODs
- 64GB per Node (Standard) to 1TB per node (Optional) System Memory
- 240GB (Standard) to 1.9TB (Optional) SSD for OS
2 x 2U Storage Controller
- Choice of 2 x 12Gb SAS Ports or 2 x 16Gb FC Ports for HA RAID Arrays
- Dual 10-Core (Standard) to Dual 28-Core (Optional) Xeon Processor
- Support upto 4440 SAS drives or SSDs with EBODs
- 64GB per Node (Standard) to 1TB per node (Optional) System Memory
- 256GB (Standard) or 3.8TB (Optional) NVMe SSD for OS
Note: USO-HA & USO-FC cluster appliances have 2 x storage controllers + one or more HA RAID arrays. The supported XD-Series HA RAID arrays are listed under.
For customization options, contact StoneFly sales.
Supported Storage Expansion Arrays and Units
USO-HA and USO-FC converged storage appliances support a range of expansion arrays / RAID subsystems:
- 12 x 3.5” 2U High IOPS HA RAID Expansion Array – 12Gb SAS or 16Gb FC
- 16 x 3.5” 3U High IOPS HA RAID Expansion Array – 12Gb SAS or 16 Gb FC
- 24 x 3.5” 4U High IOPS HA RAID Expansion Array – 12Gb SAS or 16Gb FC
- 24 x 2.5” 2U High IOPS HA RAID Expansion Array – 12Gb SAS or 16 Gb FC
Supported expansion units for the converged storage HA cluster appliances include:
- 12 x 3.5” 2U HA Expansion Unit – 12Gb SAS
- 16 x 3.5” 3U HA Expansion Unit – 12Gb SAS
- 24 x 2.5” 2U HA Expansion Unit – 12Gb SAS
- 60 x 3.5” 4U HA Expansion Unit – 12Gb SAS, Single Drawer
- 60 x 3.5” 4U HA Expansion Unit – 12Gb SAS, Three Drawer
12 Bay
16 Bay
12 Bay
16 Bay
24 Bay (3.5″ drives)
24 Bay (2.5″ drives)
24 Bay (2.5″ drives)
60 Bay
Interested in StoneFly USO-HA / USO-FC Hardware Specifications?
Recommended StoneFly Converged Storage Models
USO-FC i9009n-D Cluster Unified Storage Appliance with 12-Bay High IOPs HA RAID Expansion Array
- Choice of 10/25/40/100 Gb SFP+ or six bonded 10/25/40/100 Gb per cluster
- Supports up to 1776 SAS drives or SSD (or more when using FC switch)
- Dual 16Gb Fibre Channel ports on each cluster node for connection to expansion array(s) or FC switch
- Optional upgrade to quad 16Gb Fibre Channel ports on each cluster node
- 2 x 1U Rackmount form factor
- Redundant Platinum certified high-efficiency hot-swappable power supply
- Supported RAID subsystems range from 12-bay 2U to 60-bay 4U.
USO-2404 Integrated Unified Storage Appliance
- Dual bonded 10/25/40/100 Gb RJ-45 (Backwards compatible with 1Gb)
- Optional upgrade up to 4 x 10/25/40/100 Gb RJ-45, SFP+, CX4, SR, LR Optical network ports.
- 16 x 3.5” drives: 7200RPM SAS, 10k SAS, 15k SAS, and 12GB SSDs
- Supported RAID levels: 0, 1, 3, 5, 6, 10, 30, 50, and 60 with RAID Cache battery backup.
- Redundant Titanium certified high-efficiency hot-swappable power supply.
