StoneFly S3 Object Storage Solutions

Highly Scalable & Secure S3 Storage

  • Cloud: AWS S3 & Other S3 Compatible Clouds
  • Virtual S3 Solution (VM) : S3 Storage Provisioning using Available Storage Resources with Support for VMware, Hyper-V, KVM & Citrix (XenServer)
  • Local S3 Object Storage Appliances: Enterprise & Value-Tier S3 Object Storage Servers

StoneFly S3 Object Storage Solutions: Overview

StoneFly Local S3 Object Storage Appliances 2

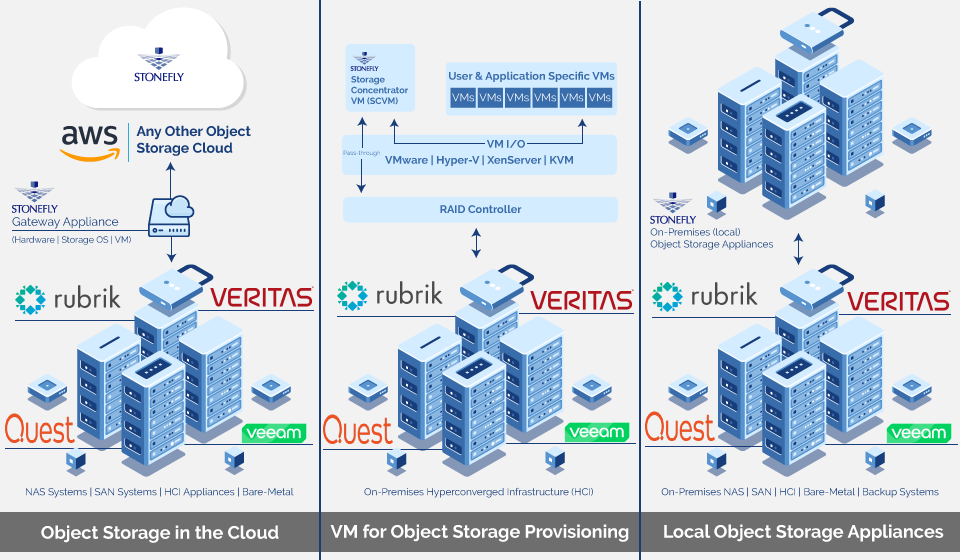

StoneFly offers three S3 object storage options:

  • Cloud: Serverless S3 object storage in AWS cloud or any other S3 compatible cloud.
  • Virtual: Deploy SCVM as a VM on VMware, Hyper-V, KVM and Citrix (formerly XenServer) hypervisors and provision S3 object storage volumes using the available storage stack.
  • Physical: Purpose-built local S3 object storage appliances.

Our S3 object storage solutions (cloud, virtual or physical) can be configured as storage targets for backup software such as Rubrik, Commvault, Veritas, Veeam, and more.

StoneFly S3 solutions can be seamlessly integrated with S3 compatible applications, servers, and software.

S3 Object Storage in the Cloud

StoneFly Local S3 Object Storage Appliances 3

Integrate cloud S3 object storage repositories with your on-premises infrastructure using StoneFly cloud storage gateway.

Our cloud storage gateway can let you configure S3 storage in AWS or any other S3 compatible cloud. These cloud-based S3 repositories can be set up as target storage locations for your:

  •  Backup software like Rubrik, Veeam, Commvault, Acronis, etc.
  • On-Premises Infrastructure: NAS, SAN, unified systems, and Hyperconverged Infrastructure (HCI)
  • Virtual Machines (VMs) running on VMware, Hyper-V, KVM, Citrix (XenServer)
  • Relational Databases such as MySQL, Hadoop, Docker, PostGreSQL, etc.
  • And More!

StoneFly cloud storage gateways are available as virtual gateway and hardware gateway appliances.

The virtual gateway appliance can be deployed as a VM on VMware, Hyper-V, KVM and Citrix (formerly XenServer) hypervisors.



See Our S3 Storage in the Cloud in Action

What is Local S3 Object Storage?

StoneFly Local S3 Object Storage Appliances 4

Local S3 object storage repositories deliver cloud-like performance and scalability; enabling you to leverage affordable on-premises storage without having to worry about network, bandwidth and file size limitations, data and server security, compliance, and egress costs.

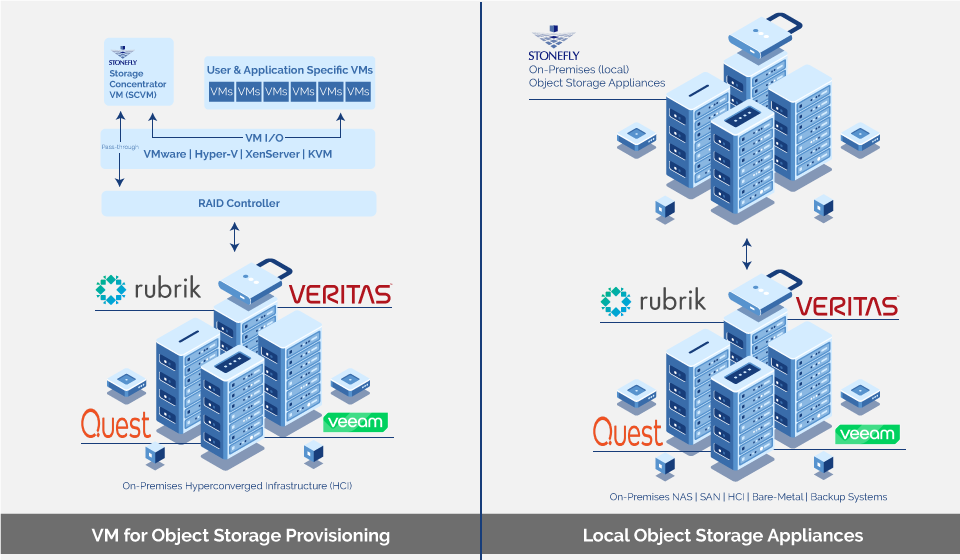

With our technology, you can set up local S3 object storage in two ways:

  • Deploy StoneFly SCVM as a VM on your VMware, Hyper-V, KVM or Citrix (XenServer) hypervisor and provision S3 object storage volumes repurposing unused storage resources.
  • Set up enterprise or value-tier purpose-built S3 object storage appliances.

StoneFly SCVM and S3 object storage appliances support cloud connect to AWS and other S3 compatible clouds for data archiving and long term data storage.

StoneFly Local S3 Object Storage Appliances 5

Local S3 Object Storage Provisioning

with StoneFly SCVM

Re-purpose unused storage resources and provision S3 object storage volumes using StoneFly SCVM.

You can deploy StoneFly SCVM as a VM on industry standard hypervisors to provision local S3 storage volumes and integrate them with backup software like Rubrik, Veeam, Commvault, etc.  relational databases such as MySQL, Hadoop, Docker, PostGreSQL, etc. or S3 compatible applications like SAP HANA and more.

Our technology enables you to:

  • Provision local S3 storage for Hyper-V workloads
  • Provision local S3 storage for VMware workloads
  • Provision local S3 storage for KVM workloads
  • Provision local S3 storage for Citrix (XenServer) workloads

Get a free trial and test our S3 object storage provisioning solution by deploying the VM in your environment.

Experience the Difference with Our SCVM for Local S3 Storage Provisioning

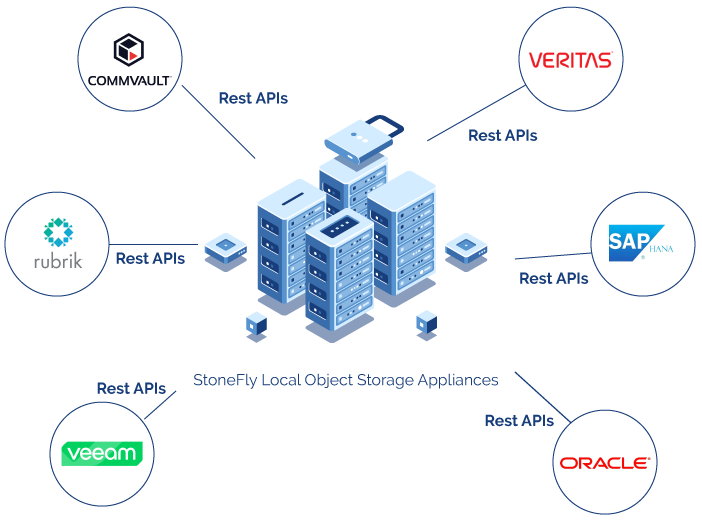

What are Local S3 Object Storage Appliances?

StoneFly S3 object storage appliances are purpose-built S3 compatible storage hardware with built-in active/active RAID controllers.

The local or on-premises S3 storage appliances are highly scalable and provide seamless integration with all S3 compatible applications, software and cloud.



StoneFly Local S3 Object Storage Appliances 6

StoneFly S3 Compatible Storage Appliances

StoneFly Local S3 Object Storage Appliances 7

StoneFly S3 compatible storage appliances enable applications, software, backup appliances, and Virtual Machines (VMs) to store hundreds of terabytes of data in a highly scalable, high performance and affordable storage system. These systems are accessed using industry standard S3 object storage protocols and REST APIs.

With support for high performance flash (SSDs) and enterprise SAS drives, multi-core processors, and RAID, the S3 object storage appliances can be set up to support a wide array of enterprise requirements. The S3 object storage appliances offer seamless integration with S3 compatible applications and software and allows you to set up storage tiers in AWS S3 and other S3 compatible clouds; if need be.

StoneFly offers different configurations for the S3 appliance hardware. You can choose from an array of high performance enterprise S3 appliances and affordable value-tier S3 object storage appliances.

Key Features of StoneFly Local S3 Object Storage Appliances

Highly Scalable

Capable of scale out & scale up; the StoneFly S3 object storage appliances are hyperscale systems that can scale to virtually unlimited number of nodes with hundreds of terabytes to petabytes of storage capacities.

Hybrid Systems

The appliances support S3 protocols and integration with AWS S3 and S3 compatible cloud storage repositories. This capability enables you to set up tiered storage in the cloud for long term storage and retention.

Advanced Data Security

StoneFly S3 object storage appliances secure data-at-rest and data-in-transit with state-of-the-art encryption technology that protect the data from malicious access and threats like ransomware attacks.

Explore How StoneFly S3 Storage Appliances Work

StoneFly S3 Object Storage OS Features

Data Deduplication

Optimize storage footprint & enhance storage resource usage

Automated Tiering

Define policies and automatically transfer data between high performance and cost-effective storage tiers

Advanced Data Security

Secure S3 object data with state-of-the-art encryption technology that protects data-at-rest and data-in-transit

WORM Storage

Provision Write-Once Read-Many (WORM) storage volumes for immutable, secure and compliant data storage

Immutable Snapshots

Secure mission-critical data with built-in read-only delta-based snapshots

Advanced Reporting

Real-time graphical performance reporting with tracking, monitoring & utilization reporting

Learn more about the storage OS features of StoneFly S3 object storage solutions

Available StoneFly S3 Storage Appliance Series

Choose from a range of value-tier, mid-tier and enterprise-tier S3 storage appliances & build your S3 storage system as per your requirements and budget. Available StoneFly S3 appliance series include:

  • I-Series (Value-Tier S3 Storage Appliances for SMBs)
  • D-Series (Mid-Tier S3 Storage Appliances for SMEs)
  • XS-Series (Enterprise Single Xeon S3 Storage Appliances)
  • XD-Series (Enterprise Dual Xeon S3 Storage Appliances)
StoneFly Local S3 Object Storage Appliances 8

S3 Storage I-Series Hardware Specifications

  • 4-bay  tower to 36-bay 4U rackmount appliances
  • Quad-Core (Standard) to Octa-Core (Optional) 9th Gen Intel Processors
  • 8GB (Standard) to 64GB (Optional) System Memory
  • Built-in Hardware RAID Controller
  • Up to 1 Additional PCI-E Slot for Optional Network Card Upgrades with Support for 1Gb RJ-45, 10Gb RJ-45, SFP+, CS4, SR Optical, LR Optical, & 40Gb QSFP+ ports
  • Redundant High-Efficiency Hot-Swappable Power Supplies

Note: Supported components & upgrade options may vary depending on S3 storage appliance model. For details, contact StoneFly sales.

StoneFly Local S3 Object Storage Appliances 8

S3 Storage D-Series Hardware Specifications

  • 4-bay  tower to 36-bay 4U rackmount appliances
  • Quad-Core (Standard) to Octa-Core (Optional) Xeon Processor
  • 32GB (Standard) to 128GB (Optional) System Memory
  • Built-in 12Gb SAS Hardware RAID Controller with RAID Cache Battery Backup with RAID 0, 1, 3, 5, 6, 10, 30, 50, & 60 support
  • Redundant High-Efficiency Hot-Swappable Power Supplies

Note: Supported components & upgrade options may vary depending on S3 storage appliance model. For details, contact StoneFly sales.

StoneFly Local S3 Object Storage Appliances 10

S3 Storage XS-Series Hardware Specifications

  • 8-bay  tower to 36-bay 4U rackmount appliances
  • 10-Core (Standard) to 28-Core (Optional) Xeon Processor
  • 32GB (Standard) to 512GB (Optional) System Memory
  • 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
  • Built-in 12Gb SAS Hardware RAID Controller with RAID Cache Battery Backup with RAID 0, 1, 3, 5, 6, 10, 30, 50, & 60 support
  • Redundant High-Efficiency Hot-Swappable Power Supplies

Note: Supported components & upgrade options may vary depending on S3 storage appliance model. For details, contact StoneFly sales.

StoneFly Local S3 Object Storage Appliances 10

S3 Storage XD-Series Hardware Specifications

  • 8-bay  tower to 36-bay 4U rackmount appliances
  • Dual 10-Core (Standard) to Dual 28-Core (Optional) Xeon Processor
  • 64GB (Standard) to 1TB (Optional) System Memory
  • 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
  • Built-in 12Gb SAS Hardware RAID Controller with RAID Cache Battery Backup with RAID 0, 1, 3, 5, 6, 10, 30, 50, & 60 support
  • Redundant High-Efficiency Hot-Swappable Power Supplies

Note: Supported components & upgrade options may vary depending on S3 storage appliance model. For details, contact StoneFly sales.

Get an affordable & hyperscale S3 object storage appliance
