Veeam-Ready Backup and Replication Appliance
Now Available with Support for Veeam Availability Suite v10!
Backup Software Features
- 1-click restore: Self-service Virtual Machine (VM) and file recovery.
- Instant VM recovery: Restore entire VMs in minutes with veeam instant recovery
- Instant file-level recovery: Recover individual files effortlessly.
- Veeam Bare Metal Backup: Backup & restore complete servers from scratch.
- Veeam MySQL Backup: Backup & restore MySQL, NoSQL, & PostGreSQL databases.
- Image-based VM replication with failover and failback.
- Seamlessly replicate to the cloud with Veeam cloud connect.
- Perform bare metal recovery of the primary appliance from a mirror or remote appliance.
StoneFly SCVM™ – Management Software Features
- Support for iSCSI, SNMP Traps, UPS, Nagios, RAID Monitoring, Call Home, and VMware VAAI
- Automated Online Volume / Storage Expansion
- Advanced Report Management, System-Wide Graphical Performance & Utilization Reporting.
- Support for enterprise-grade data services: snapshots, replication, erasure coding, deduplication, and more.
- Support for NFS, CIFS/SMB, iSCSI and optional Fibre Channel protocols.
- Backup Vault – Highly Secure Isolated Linux Based Virtual Appliances for Redundant Backup Data Storage & Data Protection
- Air Gapped Backup Repository – Detachable NAS Volumes Best Suited for Sensitive & Confidential Data Storage
Backup Appliance – Hardware Features
- Built-in NVMe for Operating System (OS).
- Support for 7200RPM, 10k, and 15k enterprise SAS and 12Gbs flash drives (SSDs).
- Terabytes to Petabytes of highly scalable storage capacity.
- Redundant and modular infrastructure without single point-of-failure.
- Built-in Hardware RAID controller with RAID Cache battery backup.
Veeam Backup and Replication Appliance with Cloud Connect to Microsoft Azure and AWS cloud
LiveSpin™ – Spin up your replicated VMs in seconds – Just one right-click and failover
DR365V is a purpose-built optimized with integrated hyperconverged Enterprise Veeam Backup, Replication and disaster recovery appliance. The integrated high-performance SAN and embedded VMware ESXi or Microsoft Hyper-V hypervisor, StoneFly Cloud Connect for Azure, AWS combined with data protection and services make it ideal for today’s challenging environments.
Consolidating secondary storage onto a hyperconverged, web-scale data platform that spans both private and public clouds. Enterprise customers begin by radically streamlining their backup and data protection, then converge file and object services, test/dev instances and analytic functions to provide a global data store.
Includes backup and failover of any physical and virtual server with automated business continuity on premises to any remote data center, private or public cloud.
The StoneFly DR365V provides you with a total backup solution for all of your physical and virtual servers and workstations in a single box. Manage all of your backup operations for your data center or office with a single central management console.
Integrated Flash with RAID 1, 10 for performance enhanced backup.
Flash Cache offers high IOPS for spinning up hundreds VMs in case of failover to the DR appliance.
Tiering manages your data life cycle from Hot – Cold – Deep Archive.
Up to 320 vCPU and 1.5 TB memory per appliance node.
Full hardware RAID Controller.
StoneFly DR365V™ – Enterprise-Grade Backup & Disaster Recovery Appliance
The DR365V™ is an enterprise-level backup appliance capable of supporting high density NFS, CIFS/SMB, and iSCSI workloads and delivering RTPOs of less than 15 minutes.
DR365V is a hyperconverged backup infrastructure that enables users to backup and recover Virtual Machines (VMs) hosted on Hyper-V, VMware, and Citrix (formerly XenServer) hypervisors. Enterprise users can create mirrored volumes on (on-site / offsite) DR365V appliances or create replicas in Azure, AWS, StoneFly private cloud, or any other S3 compatible cloud using built-in cloud connect backup technology.
To support a variety of enterprise backup and recovery requirements, the DR365V can be populated with enterprise SAS or flash drives (SSDs) or combinations of both. The DR365V is available in a wide range of form factors from 12 to 36-bay with Terabytes to Petabytes of storage capacity.
The DR365V comes with base configuration of iSCSI and supports Fibre Channel upgrade.
Each DR365V hardware configuration is highly scalable, redundant, modular, and free of single point-of-failure.
Data Loss or Data Corruption? Not a Problem with DR365V Backup & DR Solution
What can you Backup with our Veeam Backup and Replication Appliance?
The DR365V Veeam backup appliance enables users to backup physical Windows and Linux servers, Virtual Machines (VMs), email servers, applications, programs, and mission-critical files and folders such as patient information, insurance information, financial information, etc.
Protect MySQL, Oracle, SQL Server, Exchange, SharePoint, SAP Hana and Active Directory with one robust and durable backup solution.
With features like delta-based snapshots, synchronous replication, instant recovery, and granular file recovery, enterprise users can make sure that they maintain access to important data all the time.
The DR365V gives users the full business continuity experience with built-in hardware RAID and software RAID (erasure coding).
Our purpose-built enterprise backup solution makes sure that you never lose anything that’s important to your business.
Enterprise-Grade Backup and Disaster Recovery Features
Backup Features
Delta-Based Snapshots
Create thousands of delta-based snapshots per subsystem and ensure your business never loses data due to a ransomware attack, data corruption, natural disaster or any similar disaster.

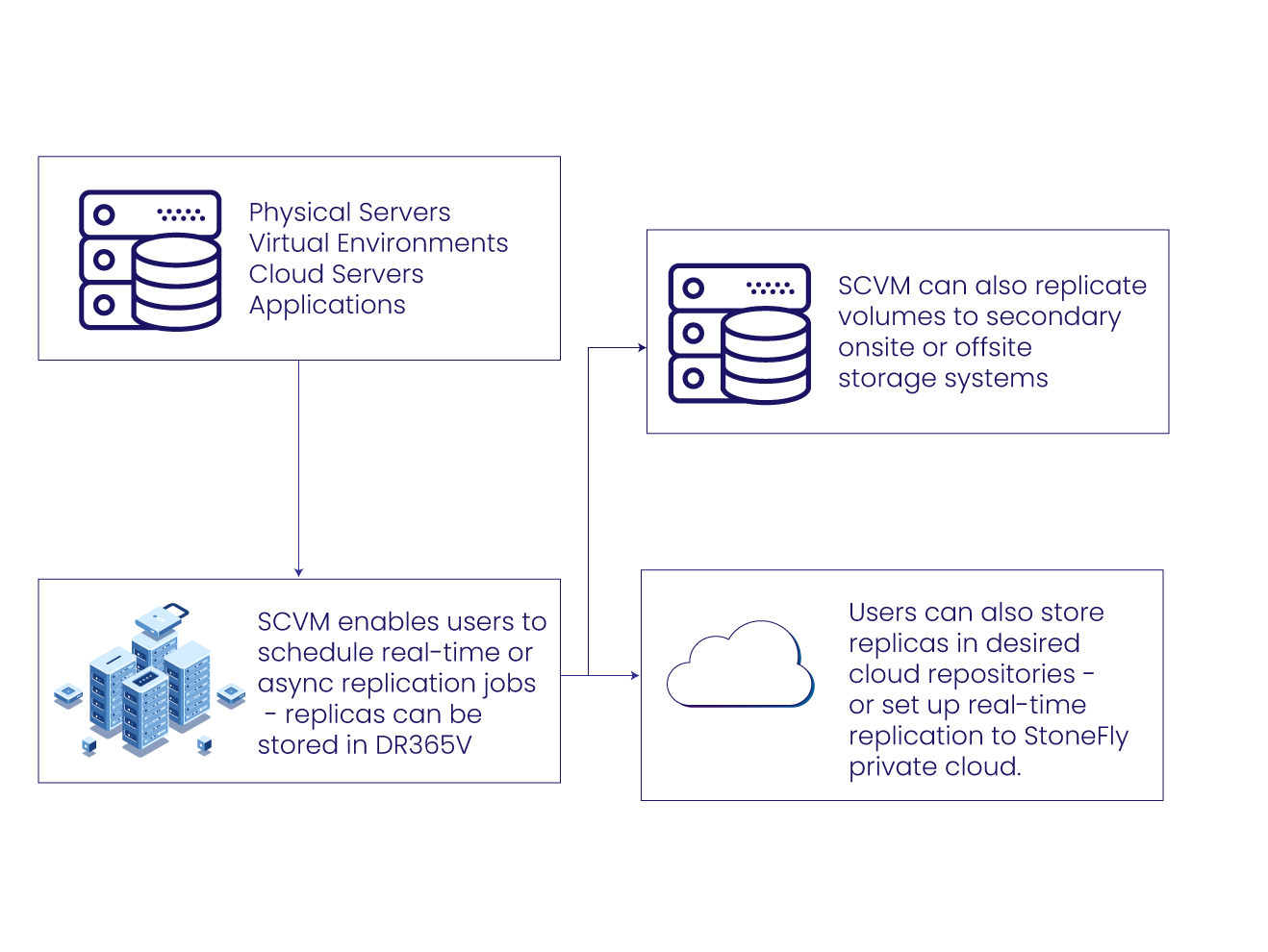

Replication: Sync & Async
Configure synchronous or asynchronous replication and replicate to physical on-site and offsite DR365V appliances or directly in public clouds like Azure, AWS, or to StoneFly’s private cloud enhancing business continuity and data availability.
Automated Tiered Backup Architecture
Create tiers with combination of enterprise SAS, SSDs, and object storage tiers and automate data transfers between tiers for simplified data management and added cost effectiveness.
Multi-Site / Multi-Appliance Replication
Asynchronously replicate one appliance to multiple DR365V mirrors or opt to replicate mission-critical workloads from multiple appliances to one appliance. The DR365V supports replication from One-to-Many and Many-to-One backup appliances.
Compressed Veeam Backups
Reduce the storage space consumed by Veeam backups by using compression. The DR365V enables IT administrators to decide compression rates and ensures no data loss during the compression and decompression process.
End-to-End Encryption
Secure misison-critical workloads with advanced AES 256-bit encryption technology that protects data before and after transit. And protect data during transit with SSL/TLS tunneling. Malicious or Unauthorized access? Not a problem.
Built-in Cloud Connect Backup
Create redundant and highly available Veeam backup copies in public clouds like Azure, AWS, and any other S3 compatible cloud or in StoneFly’s private cloud by leveraging built-in cloud connect technology.
Backup I/O Control
DR365V allows you to set the maximum acceptable I/O latency level for production datastores to ensure that backup and replication activities do not impact storage availability to production workloads.
The feature includes a global latency setting and provides setting customization on a
per-datastore basis.
VMware vCloud Backup
DR365V supports vCloud Director enabling vCloud users to protect their workloads in vCloud in our Veeam appliance. This ability to backup workloads includes vApps and VMs running on VMware hypervisor.
Integrated SureBackup™ & SureReplica™
Automatically verify the integrity of backup copies and replication jobs with built-in SureBackup and SureReplica features. These features make sure that your mission-critical data backups are available and recoverable.
Granular & File-level Backups
Instead of backing up entire volumes, select mission-critical files and folders and create Veeam backups on StoneFly DR365V for quciker and cost effective data backups.
Agent-less Backups
Backup up Virtual Machines (VMs) running on Hyper-V, VMware) hypervisors without any backup agents. Agent-less backups save time and simplify the backup process.
Single Centralized Management Console
Manage all your Veeam backups on the DR365V with a unified central management console. With a customizable dashboard and advanced reporting, the console faciltiates backup management, appliance monitoring, and storage space consumption with ease.
Flexible Backup Options
Veeam backup and replication enables users to schedule hourly, daily, weekly, event-based, and automated backup jobs faciltiating a variety of use-cases and enterprise backup requirements.
Automatic Backup Conversion to VMs
DR365V automatically converts each server backup into a VM. In the event of primary system failure, the enterprise can immediately recover by spinning up the VMs directly on the Veeam appliance or on a cloud storage repository; thus reducing time to recovery and ensuring business continuity.
Application-Aware Image-Based Backups
Protect entire volumes, servers, and VMs with image-based backups that leverage application-awareness to support all connected programs so that nothing is left out and everything is backed up and available for recovery when needed.
Veeam MySQL Backup
Backup and restore MySQL, NoSQL, PostGreSQL, and other similar structured data using DR365V backup appliance. Spin up Veeam MySQL backup VMs directly on the DR365V for instant recovery within minutes.
Veeam Bare Metal Backup
Backup complete bare metal hardware with Veeam bare metal backup and restore full servers directly on the DR365V appliance by spinning them up as VMs or restore to a target similar or dissimilar hardware.
NAS Backup Support
Add NAS devices to backup using the standard Veeam console & backup Windows & Linux based file systems to the DR365V appliance effortlessly (No agents needed).
CDP for Tier-1 (Hot Tier) Applications
Reduce RPOs and RTOs to near-zero with real-time replication-based Continuous Data Protection (CDP); recover mission-critical applications almost instantly – No more downtime!

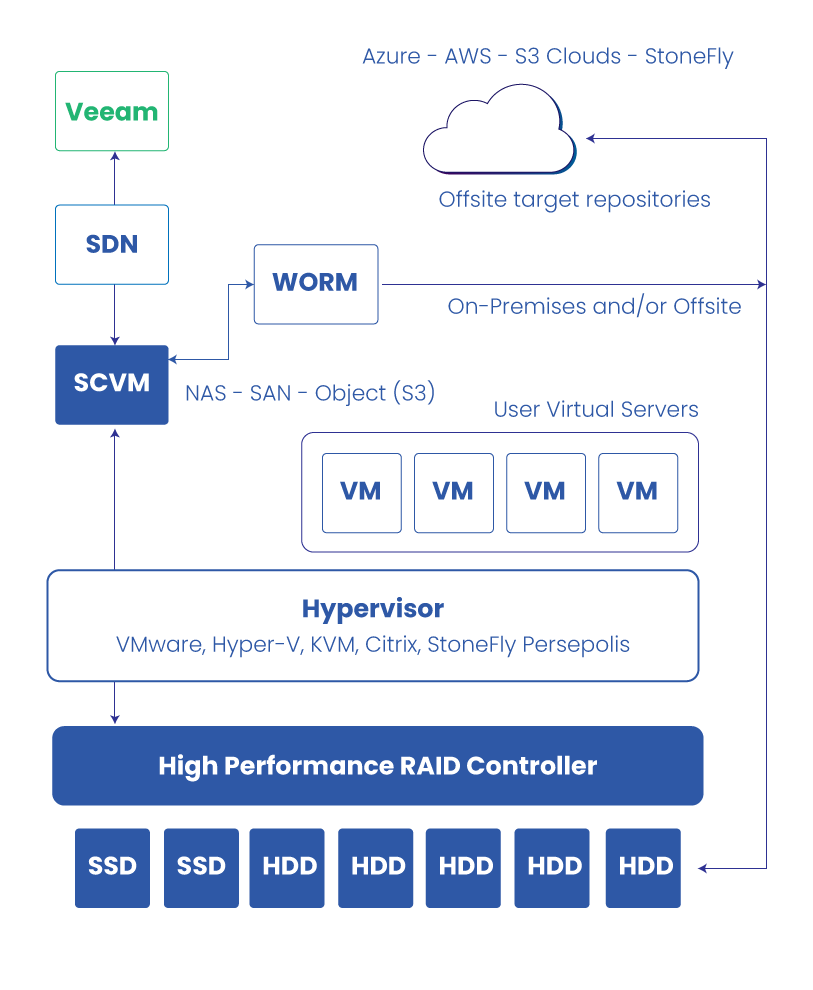

Immutable Backup Repository
Provision Write-Once Read-Many (WORM) storage repositories that secure your backup files from cyber-threats like ransomware, malware, virus, etc.
Recovery Features

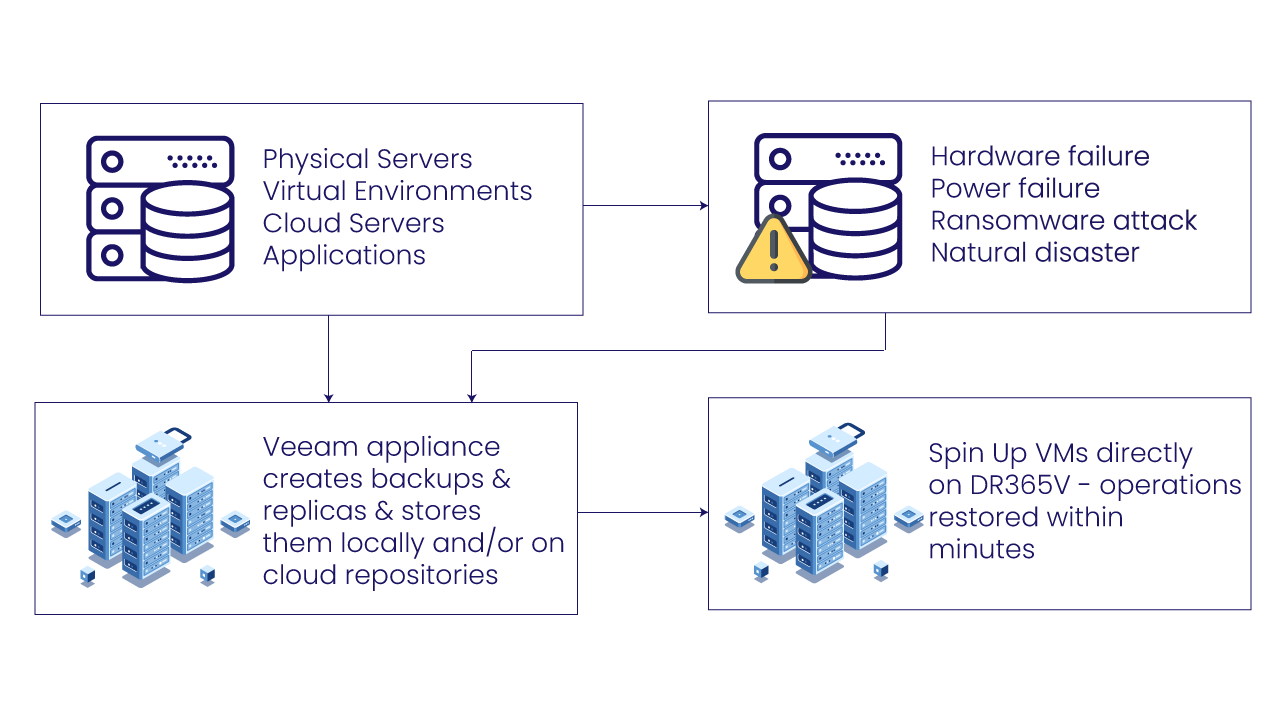

Instant VM Recovery with Direct Spin Up
Directly spin up VMs on the DR365V Veeam appliance for instant recovery. Veeam instant recovery feature helps reduce RTOs and RPOs to less than 15 minutes; hence reducing enterprise downtime.
Full VM Recovery
Recover entire VMs by spinning them up directly on the DR365V appliance. The Veeam appliance facilitates recovery on similar and dissimilar hardware and a variety of restore options to faciltiate business continuity and prevent data loss.
Direct Restore to Azure, AWS, & S3 Clouds
Leverage built-in cloud connect backup and Veeam backup and replication software to directly spin up VMs and recover enterprise workloads on cloud storage tiers. Users can directly recover to Azure, AWS, StoneFly private cloud, or any other S3 compatible cloud.
Instant File-level Recovery
In the event of a single file / folder corruption or loss, recover selective files instead of full volumes. Instant file-level recovery greatly reduces the time to recovery, the overall cost of backup, and enhances the overall backup and recovery experience.
Recover 19 Common File-Systems
Configure backup and recovery for 19 common file-systems used by Windows, Linux, BSD, Mac OS, Novell, Solaris, and Unix.
Veeam Explorer for Oracle Databases
Protect mission-critical data running in your Oracle databases with Veeam Explorer for Oracle. The enterprise-grade Veeam backup solution facilitates faster recovery and seamless integration.
Universal Application Item Recovery
U-AIR™ (Universal Application Item Recovery) enables enterprise users to recover individual objects for ANY virtualized application, including PostgreSQL and MySQL databases, by starting up the VM directly from a backup file in an isolated environment.
File Restore Portal
The File Restore Portal enables users to automatically detect VMs and leverage automatic delegation based on administrator group membership. The portal is an easy-to-use web GUI that facilitates 1-click recovery for guest files and mission-critical VMs.
Microsoft Exchange Recovery Portal
The integrated Microsoft Exchange Recovery Portal enables help desk operators to easily recover missing mailbox items to the original mailbox with a single click. Lost an important email? Not a problem!
Multiple Restore Options
DR365V Veeam backup appliance enables users to choose different restore options such as Virtual-to-Physical (V2P), Physical-to-Physical (P2P), Phyiscal-to-Virtual (P2V), and Virtual-to-Virtual (V2V). The backup solution also enables users to restore physical servers to similar or to dissimilar hardware.
Recovery Delegation
Our Veeam backup and replication appliance enables users to configure full self-service for all recovery features in the GUI by delegating recoveries for individual VMs to specific user groups. No need to run to the IT people every time your VM crashes. Recover it yourself, with a single click.
Bare Metal Recovery
Recover entire physical servers to similar or completely dissimilar and brand new hardware by injecting drivers to support the new hardware (Physical-to-Physical Restore).
Backup and Recovery Data Services
Deduplication for Backup Data
Reduce and optimize storage space consumption by leveraging deduplication for backup data. Deduplication removes unnecessary copies of data and replaces them with a hash directing to the original file. This practice effectively reduces backup data footprint and the cost of cloud backup storage and retention.
Multiple Storage Access Options
Access, backup and replicate data directly from iSCSI SAN and NAS storage through hypervisor I/O stack or over Local Area Network (LAN).
Standalone Console - No RDP Sessions Necessary
Install the console separately from the backup server using laptops, or workstations for installation; thus removing the need for Remote Desktop Protocol (RDP) sessions to the backup server.
Quick VM Migration
Effortlessly migrate VMware VMs between hosts and datastores using VMware vMotion, Storage vMotion, and Veeam’s integrated migration technology.
On-Demand Sandbox
Leverage storage snapshots to run one or more VMs directly from a backup in an isolated environment with the ability to troubleshoot, test and train on a working copy of the production environment, without impacting business operations.
Guest File System Indexing
DR365V catalogs guest files enabling effortless search of individual files to find and restore a file without knowing the precise file location, or the time when it was deleted.

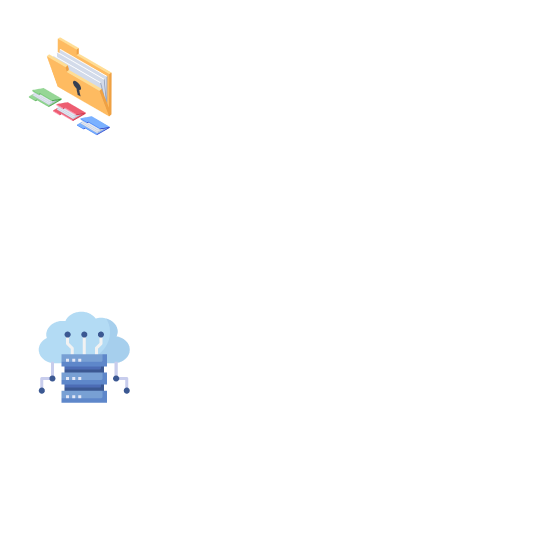

Back-end Storage for iSCSI SAN & NAS Systems
The Veeam backup appliance is capable of supporting iSCSI, NFS, and CIFS/SMB protocols and can be configured as a back-end storage to offload primary storage systems.
Thin Provisioning for Space Reclamation
Provision resources faster and make the most of your acquired storage resources with built-in thin provisioning. Thin provisioning enables users to reclaim dedicated storage space and repurpose it for a variety of applications.

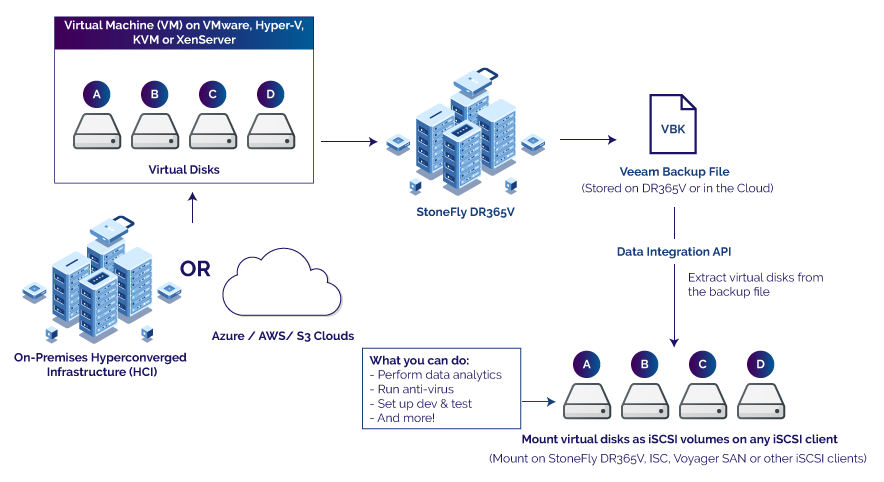

Data Integration
Extract virtual disks as iSCSI volumes from your backup files and mount them on any iSCSI client for a variety of applications such as running data analytics, virus scanning, dev & test, etc. Learn More
Linux Backup Proxy
Create as many Linux backup proxies as needed on the DR365V appliance and register Red Hat, Ubuntu and Debian Linux servers – No pre-built proxy appliance necessary!
Backup Vault
Highly secure Linux based virtual appliances that replicate the source volume for redundant and isolated backup storage. The production network cannot access the isolated appliance. Learn More

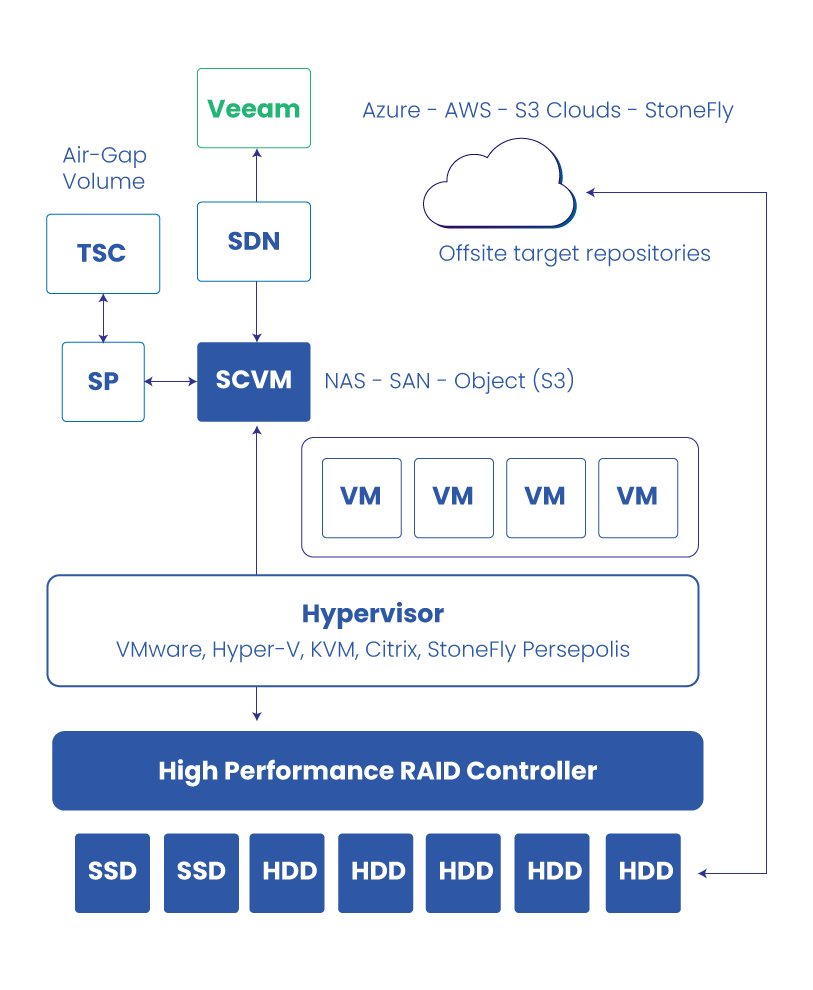

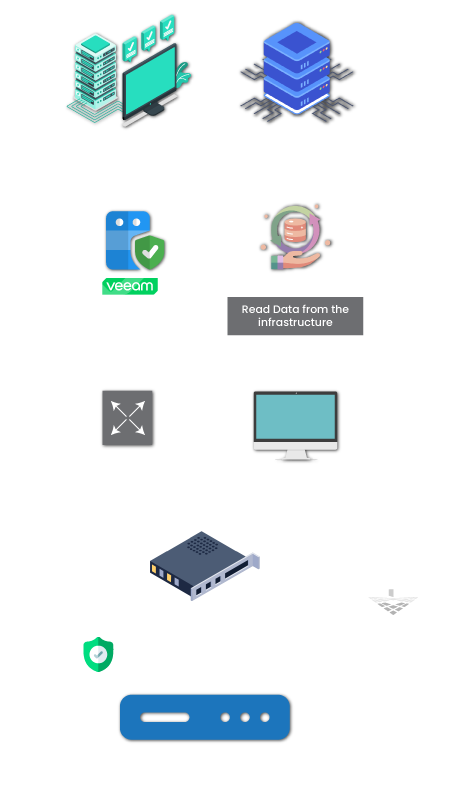

Air Gapped Backup Repository
Provision detachable virtual NAS volumes capable of turning on and off to secure mission-critical backup copies from cyber-threats and virus infections. Best fit for sensitive & confidential data storage. Learn More

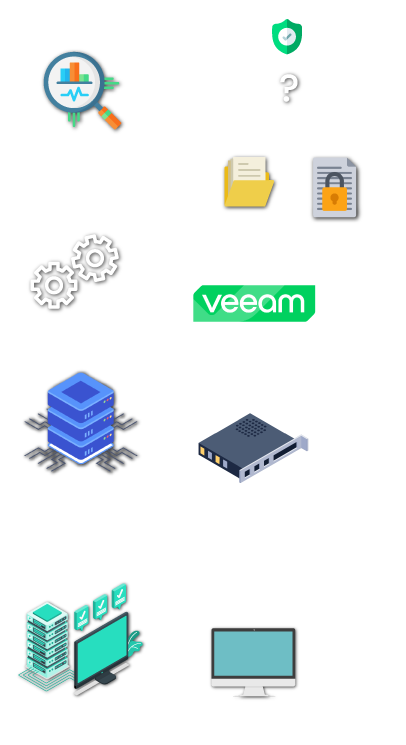

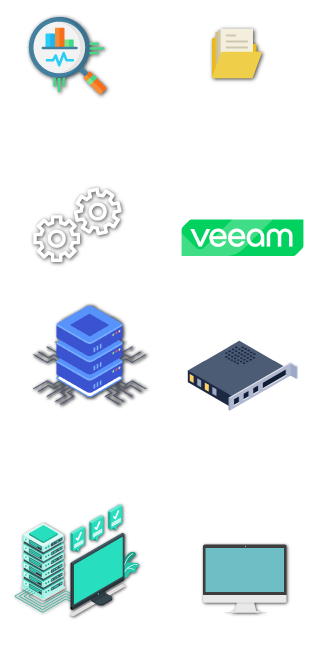

Backup Data Scan & Threat Detection
Scan your backup data for threats like dormant ransomware, virus, & malware & get email notification reports of each scan. Ensure data integrity with ease!

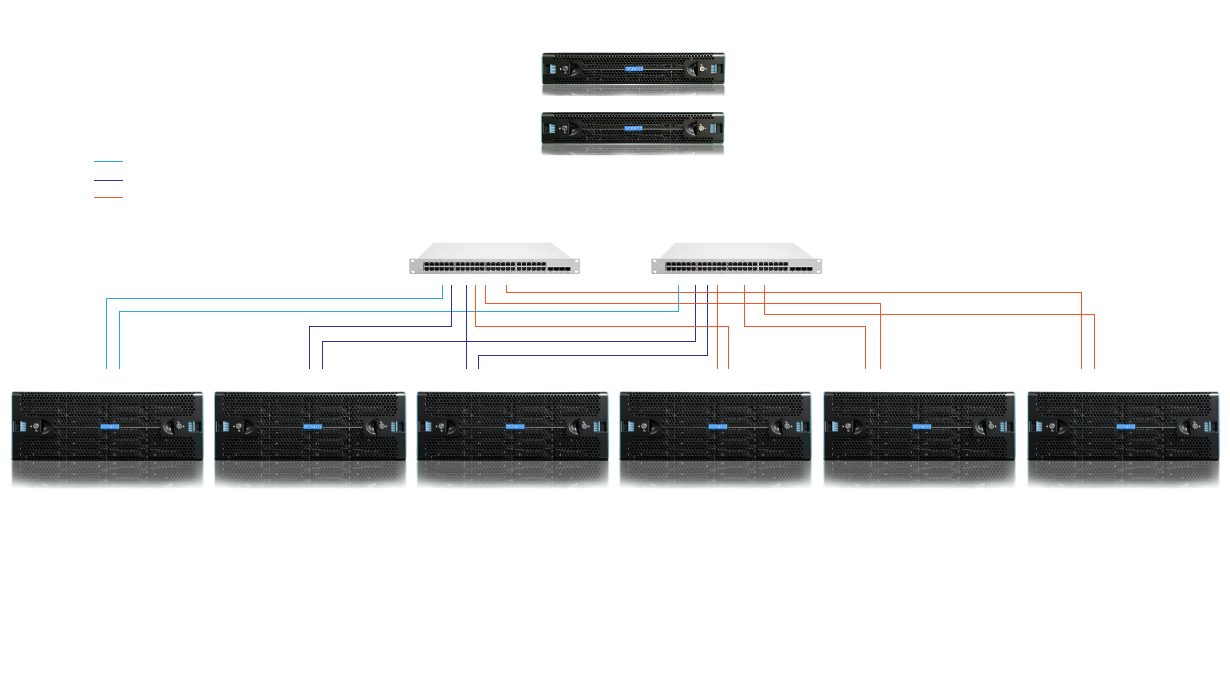

StoneFly DR365V – Veeam Backup & Replication Appliance Hardware Configurations
The DR365V appliance is a flexible backup solution capable of supporting a variety of enterprise use-cases.
The Veeam appliance is available in the following hardware configurations:
- Integrated Backup & Replication Appliance (DR365V)
- Dual Node Shared Nothing Backup & Replication Appliance
- Scale Out Backup & Replication Appliance
- High Availability Disaggregated Backup & Replication Appliance (DR365V-HA™)
Each DR365V hardware configuration comes with built-in cloud connect to Azure, AWS, StoneFly private cloud, and S3 compatible clouds and is capable of storing terabytes to petabytes of backup data.

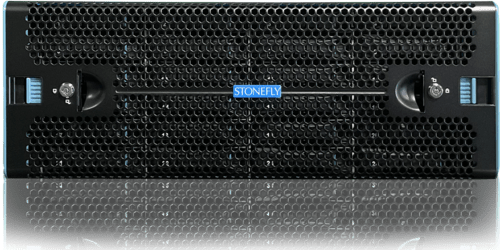

DR365V – Integrated Backup & Replication Appliance
The DR365V is a single hardware chassis with integrated Hyperconverged Infrastructure (HCI) controller, RAID controller, and storage drives.
It’s a turn-key, highly scalable, and modular backup solution best fit for mid-tier to enterprise-tier use-cases with storage capacity ranging from Terabytes to Petabytes.
The DR site in a box comes with standard iSCSI configuration with an optional upgrade of Fibre Channel.
HCI Controller: The HCI controller comprises of the management layer (StoneFly SCVM™) and the virtualization layer (hypervisors: Hyper-V, VMware, or Citrix).
RAID Controller: Built-in hardware RAID controller that supports 0, 1, 3, 5, 6, 10, 30, 50, and 60 with RAID Cache Battery Backup.
Storage Drives: The single Veeam appliance supports 7200RPM, 10k, and 15k enterprise SAS and 12Gbs SSDs to a maximum of 256 drives with expansion units.
Supported Hypervisors:

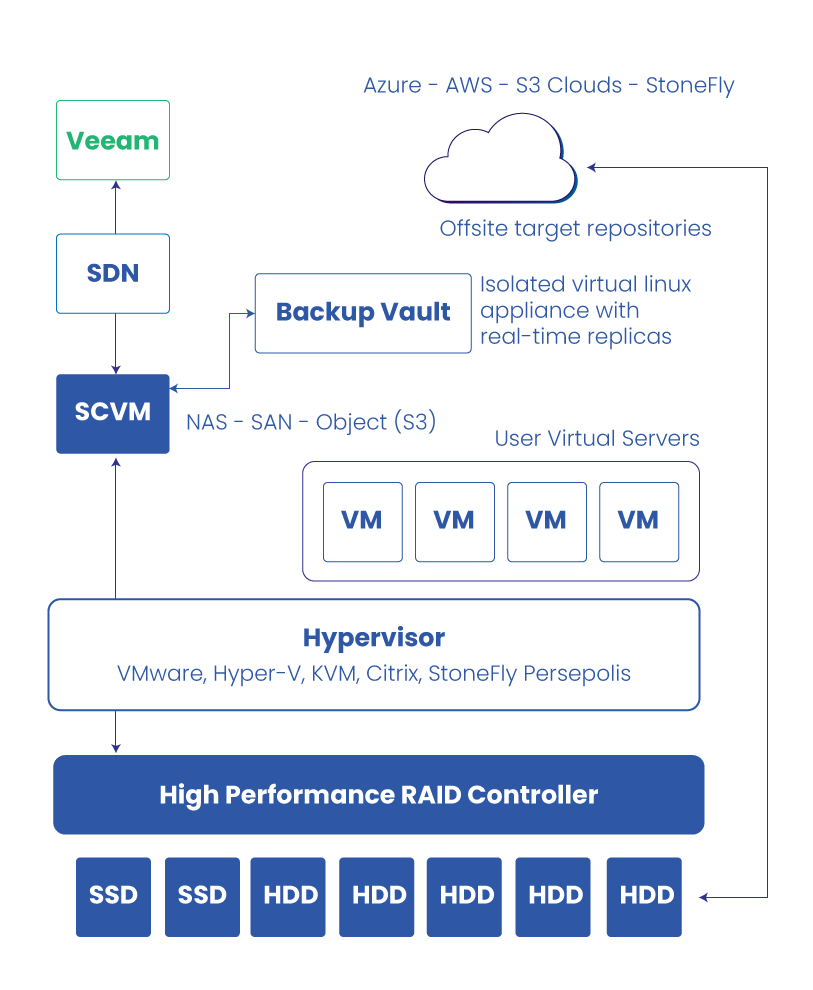

Integrated Backup & Replication Appliance Architecture

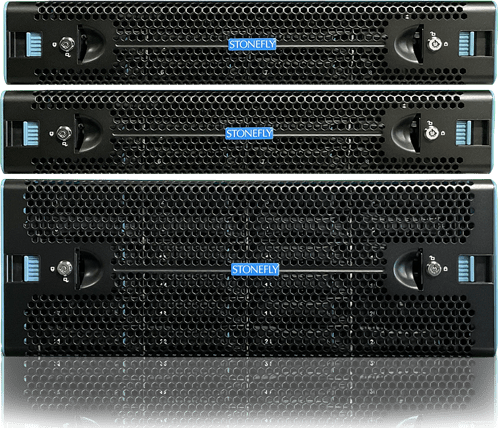

DR365V – Integrated Backup & Replication Appliance Hardware Overview

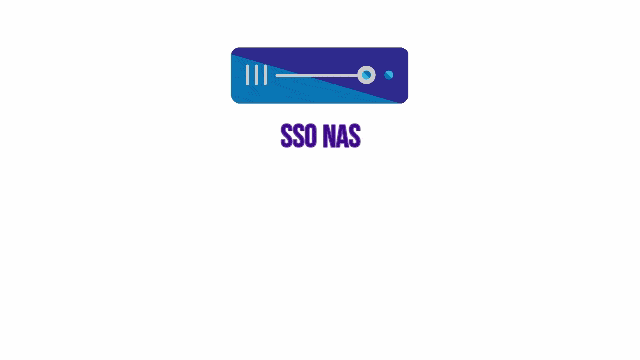

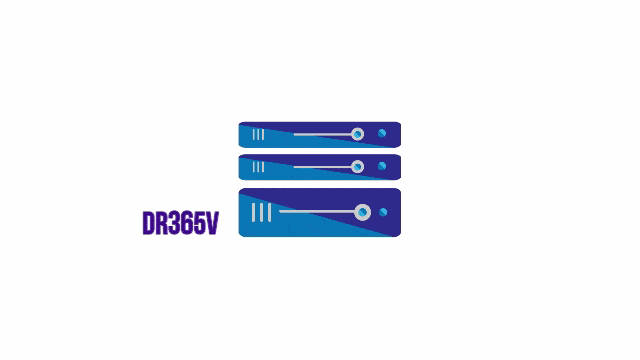

Integrated Backup & Replication Appliance Scalability
The DR365V is capable of scaling up (increase in storage capacity) and scaling out (increase in performance and storage capacity) without limits.
- To add storage capacity, users can add expansion units capable of supporting 12, 16, 24, 36, 60, 90, and 108 enterprise SAS drives and SSDs.
- To add performance and storage capacity, users can add DR365V appliance nodes available in a variety of form factors ranging from 12 to 36 enterprise SAS and SSDs.
Each appliance node is capable of supporting maximum of 256 drives for Petabytes of storage capacity.

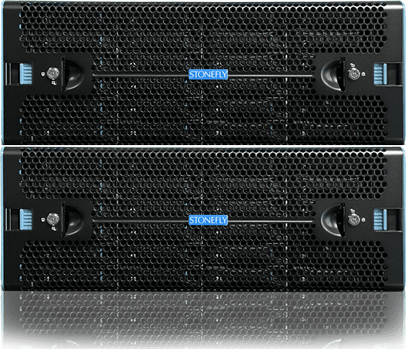

Dual Node Shared Nothing Backup & Replication Appliance
The Dual Node Shared Nothing hardware configuration leverages built-in replication features to setup on-premises or offsite appliance mirrors.
In use cases where redundancy and fault-tolerance are of utmost importance, the Dual Node Shared Nothing plays a fitting role.
The replication feature synchronously (or asynchronously) replicates data written on one backup appliance node to the other node.
In the event of a complete appliance failure, the second appliance continues to operate delivering disruption-free data acessibility and recoverability.
To reduce the digital footprint of replicated data, our backup systems leverage built-in data services such as deduplication, thin provisioning, compression and several others; hence optimizing storage space consumption and controlling the cost of data backup storage and retention.
Dual Node Shared Nothing Appliance Architecture
Dual Node Shared Nothing Appliance Scalability
The Dual Node Shared Nothing backup and replication system faciltiates performance and storage capacity expansion without limits.
- Scale Out to virtually unlimited number of appliance nodes and Petabytes of storage capacity effortlessly.
- Scale Up storage capacity by adding expansion units (EBODs). The Dual Node Shared Nothing hardware can support expansion units ranging from 12-bay to 108-bay with support for enterprise SAS drives and SSDs.

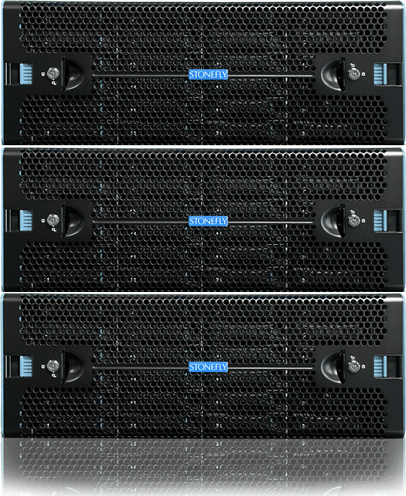

Scale Out Backup and Replication Appliance
The DR365V scale out configuration starts from 3 integrated backup appliance nodes and can scale out to virtually unlimited number of appliance nodes.
The storage capacity ranges from Terabytes to Petabytes.
Enterprise workload volume is aggregated over the total number of appliance nodes in the system. Therefore, the more appliance nodes you have in your backup system, the faster the system is despite the large data volume.
With built-in cloud connect backup features, the scale out node also facilitates data redundancy. And features like automated tiering enables automated data transfers making data management simpler and efficient.
Petabytes of Backup Data to Store? Our Scale Out Appliances Make it Look Easy.

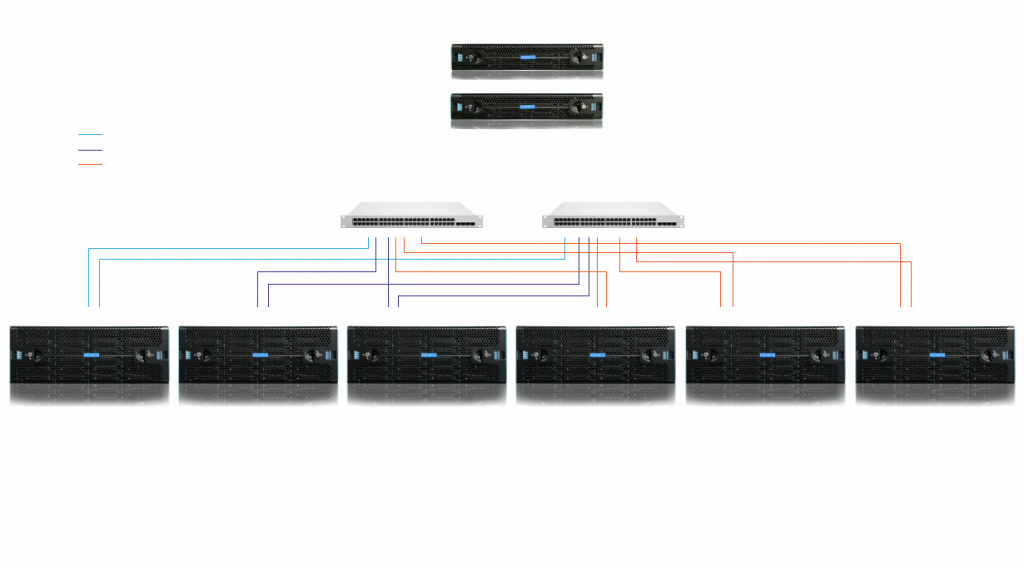

Scale Out Backup and Replication Appliance Architecture

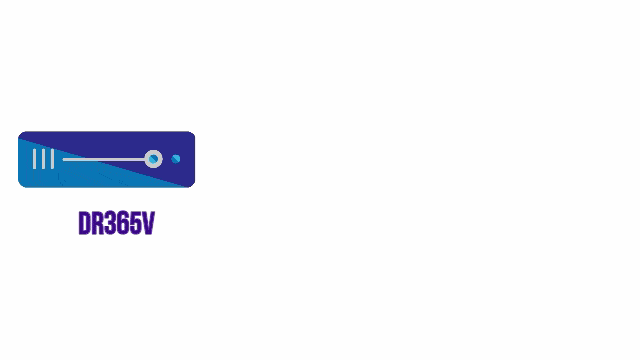

Scale Out Backup and Replication Appliance Scalability
The scale out configuration can scale without limits. Fully populated scale out appliances can reach to several Petabytes of storage capacity with the potential to grow even more.
The scale out node facilitates storage capacity and performance expansion in the following ways:
Add Storage Capacity
To increase storage capacity expansion units can be added to the scale out backup and replication system. The DR365V scale out configuration supports 12Gb SAS attached expansion arrays with support for 12, 16, 24, 36, 60, 90, and 108 enterprise SAS drives and SSDs.
Add Performance & Storage Capacity
To add compute and storage capacity, users can choose to add integrated DR365V appliance nodes. Each DR365V appliance node has integrated HCI controller, RAID controller, storage drives, and CPU, processors, motherboard, etc. Adding more appliance nodes to the scale out node enhances storage capacity and performance simultaneously.

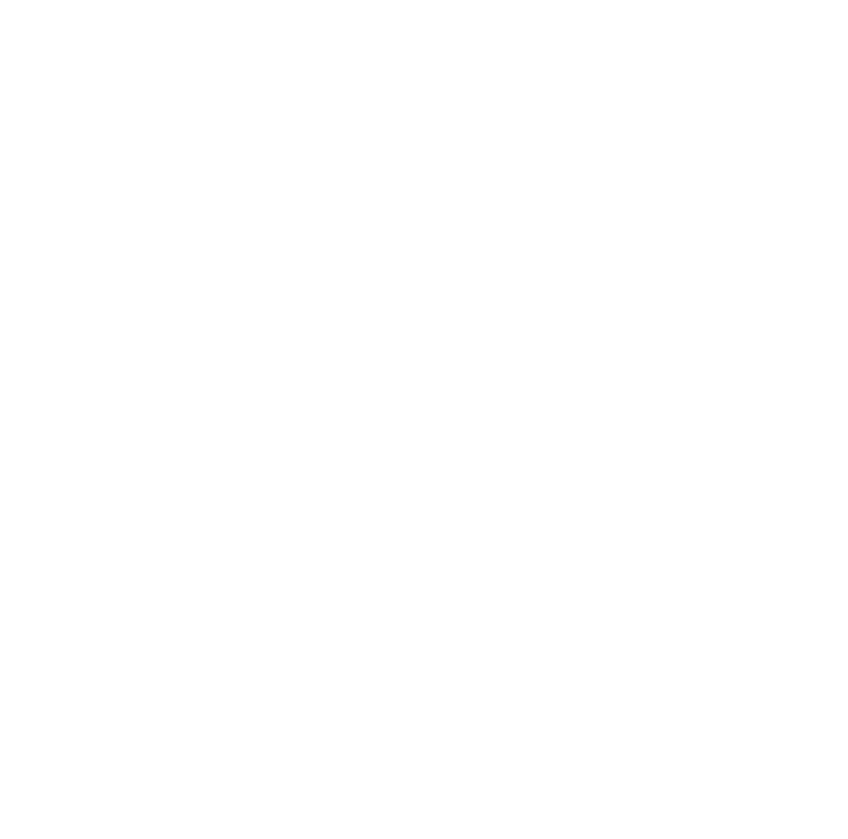

Available StoneFly DR365V Backup & DR Appliance Series
Choose from a range of value-tier, mid-tier and enterprise-tier backup & DR appliances & build your data protection system as per your requirements and budged. Available StoneFly DR365V appliance series include:
- I-Series (Value-Tier Appliances for SMBs)
- D-Series (Mid-Tier Appliances for SMEs)

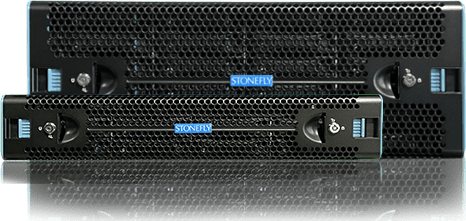

- XS-Series (Enterprise Single Xeon Appliances)
- XD-Series (Enterprise Dual Xeon Appliances)
DR365V Appliances: I-Series
DR365V I-Series Hardware Specifications
- Quad-Core (Standard) to Octa-Core (Optional) 9th Gen Intel Processors
- 8GB (Standard) to 64GB (Optional) System Memory
- Built-in 12Gb SAS Hardware RAID Controller
- Up to 1 Additional PCI-E Slot for Optional Network Card Upgrades with Support for 1Gb RJ-45, 10Gb RJ-45, SFP+, CS4, SR Optical, LR Optical, & 40Gb QSFP+ ports
- Redundant High-Efficiency Hot-Swappable Power Supplies
Note: Supported components & upgrade options may vary depending on DR365V appliance model. For details, contact StoneFly sales.
4-bay 6Gb SATA Compact Cube/Mini-Tower
4-bay 6Gb SATA 1U Rackmount
6-bay 6Gb SATA 2U Rackmount
8-bay 12Gb SAS 2U RAckmount
12-bay 12Gb SAS 2U Rackmount
16-bay 12Gb SAS 3U Rackmount
24-bay 12Gb SAS 4U Rackmount
36-bay 12Gb SAS 4U Rackmount
DR365V Appliances: D-Series
DR365V D-Series Hardware Specifications
- Quad-Core (Standard) to 16-Core (Optional) Xeon Processor
- 32GB (Standard) to 128GB (Optional) System Memory
- Built-in 12Gb SAS Hardware RAID Controller with RAID Cache Battery Backup with RAID 0, 1, 3, 5, 6, 10, 30, 50, & 60 support
- Redundant High-Efficiency Hot-Swappable Power Supplies
Note: Supported components & upgrade options may vary depending on DR365V appliance model. For details, contact StoneFly sales.
4-bay 6Gb SATA Compact Cube/Mini-Tower
4-bay 6Gb SATA 1U Rackmount
6-bay 6Gb SATA 2U Rackmount
8-bay 12Gb SAS 2U RAckmount
12-bay 12Gb SAS 2U Rackmount
16-bay 12Gb SAS 3U Rackmount
24-bay 12Gb SAS 2U Rackmount (2.5″)
24-bay 12Gb SAS 4U Rackmount (3.5″)
36-bay 12Gb SAS 4U Rackmount
DR365V Appliances: XS-Series
DR365V XS-Series Hardware Specifications
- 10-Core (Standard) to 28-Core (Optional) Xeon Processor
- 32GB (Standard) to 512GB (Optional) System Memory
- 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
- Built-in 12Gb SAS Hardware RAID Controller with RAID Cache Battery Backup with RAID 0, 1, 3, 5, 6, 10, 30, 50, & 60 support
- Redundant High-Efficiency Hot-Swappable Power Supplies
Note: Supported components & upgrade options may vary depending on DR365V appliance model. For details, contact StoneFly sales.
8-bay 12Gb SAS 2U Rackmount
12-bay 12Gb SAS 2U Rackmount
16-bay 12Gb SAS 3U Rackmount
24-bay 12Gb SAS 2U Rackmount (2.5″)
24-bay 12Gb SAS 4U Rackmount (3.5″)
36-bay 12Gb SAS 4U Rackmount
DR365V Appliances: XD-Series
DR365V XD-Series Hardware Specifications
- Dual 10-Core (Standard) to Dual 28-Core (Optional) Xeon Processor
- 64GB (Standard) to 1TB (Optional) System Memory
- 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
- Built-in 12Gb SAS Hardware RAID Controller with RAID Cache Battery Backup with RAID 0, 1, 3, 5, 6, 10, 30, 50, & 60 support
- Redundant High-Efficiency Hot-Swappable Power Supplies
Note: Supported components & upgrade options may vary depending on DR365V appliance model. For details, contact StoneFly sales.
8-bay 12Gb SAS 2U Rackmount
12-bay 12Gb SAS 2U Rackmount
16-bay 12Gb SAS 3U Rackmount
24-bay 12Gb SAS 2U Rackmount (2.5″)
24-bay 12Gb SAS 4U Rackmount (3.5″)
36-bay 12Gb SAS 4U Rackmount
Supported DR365V Storage Expansion Units
- 12-bay 3.5” 2U 12Gb SAS Expansion Unit
- 16-bay 3.5” 3U 12Gb SAS Expansion Unit
- 24-bay 3.5” 4U 12Gb SAS Expansion Unit
- 24-bay 2.5” 2U 12Gb SAS Expansion Unit
- 44-bay 3.5″ 4U 12Gb SAS Expansion Unit
- 60-bay 3.5″ 4U 12Gb SAS Expansion Unit
Note: DR365V I-Series appliances only support scale out. The I-Series appliances do not support expansion units. For details, contact StoneFly pre-sales engineers.
DR365V-HA™ – Disaggregated High Availability Backup & Replication Appliance
The DR365V-HA comprises of disaggregated hardware chassis. Our disaggregated hardware configuration comprises of the following components:
- Dual HCI Controllers (1U or 2U)
- RAID Array (12 to 36-bay)
HCI Controller: The HCI Controllers are available in 1U and 2U chassis. Standard HCI controllers are available with 12Gb SAS ports. Optional upgrades include 16Gb Fibre Channel ports.
The 1U controller, both 12Gb SAS and 16Gb FC, are capable of supporting a maximum of 1776 drives.
The 2U controller, both 12Gb SAS and 16Gb FC< are capable of supporting a maximum of 4440 drives.
RAID Array: The RAID array has built-in dual active/active RAID controller and storage drives.
The redundant RAID controllers ensure that even if one fails, the second one continues to function.
Supported RAID array form factors range from 12-bay to 36-bay chassis.
DR365V-HA Disaggregated High Availability Appliance Architecture
The DR365V-HA is a highly redundant and fault-tolerant hardware configuration. The backup and replication system continues to function even in the event of HCI controller failure, RAID controller failure, power supply failure, or drive failure.
Our DR365V-HA is a truly robust and battle-tested backup solution with no single point-of-failure. If your enterprise IT environment needs a hardware solution that can withstand almost any kind of disaster, then DR365V-HA is the perfect choice for your use-case.
DR365V-HA Disaggregated High Availability Appliance Scalability
The standard configuration of DR365V-HA is capable of storing Terabytes to Petabytes of backup data.
Furthermore, the disaggregated backup system is also capable of scaling out (increase in performance and storage capacity) and scaling up (addition of storage capacity) via the addition of appliance nodes and expansion units respectively.
- To scale out: users can choose to add more appliance nodes. They can add integrated DR365V nodes or the disaggregated DR365V-HA appliance nodes.
- To scale up: users can add expansion units. The DR365V-HA can support expansion units with support for 12, 16, 24, 36, 60, 90, and 108 enterprise SAS drives and SSDs.
As the number of appliance nodes increase within the backup system, the totaly workload volume is aggregated over the available performance capacity.
Each appliance node has integrated processor, CPU, and compute capacity. Therefore, the addition of appliance nodes multiplies the ability to compute along with storage capacity.
The endless ability to scale makes DR365V-HA a good fit for high density high volume enterprise use-cases such as research data, medical record data, data analytics, and many other similar use-cases.
Redundant & Modular Backup Hardware
Each DR365V hardware configuration has redundant power supplies. The hyperconverged backup solution ensures fault-tolerance by using hardware RAID controller, and software RAID (Erasure coding) for additional data redundancy and drive failure tolerance.
The modular infrastructure makes it very easy to remove and replace power supplies. The process of adding or removing storage drives is equally easier. And neither process requires any tools at all.
It’s as easy as pulling the drive tray or power supply and then sliding it back in. Done within seconds.
Available Disaggregated DR365V-HA Appliance Models
Choose from a range of value-tier, mid-tier and enterprise-tier high availability backup & DR appliances & build your HA cluster data protection system as per your requirements and budget. Available StoneFly DR365V-HA appliance series include:
- D-Series (Mid-Tier SAN Appliances for SMEs)
- XS-Series (Enterprise Single Xeon SAN Appliances)
- XD-Series (Enterprise Dual Xeon SAN Appliances)
DR365V-HA Appliances: D-Series
2 x 2U HCI Controller
- Quad-Core (Standard) to 16-Core (Optional) Xeon Processor
- Support upto 1776 SAS drives or SSDs with EBODs
- 32GB per Node (Standard) to 128GB per node (Optional) System Memory
Note: DR365V-HA cluster appliances have 2 x HCI controllers + one or more HA RAID arrays. The supported D-Series HA RAID arrays are listed under.
For customization options, contact StoneFly sales.
DR365V-HA Appliances: XS-Series
2 x 1U HCI Controller
- Choice of 2 x 12Gb SAS Ports or 2 x 16Gb FC Ports for HA RAID Arrays
- 10-Core (Standard) to 28-Core (Optional) Xeon Processor
- Support upto 1776 SAS drives or SSDs with EBODs
- 32GB per Node (Standard) to 512GB per node (Optional) System Memory
- 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
2 x 2U HCI Controller
- Choice of 2 x 12Gb SAS Ports or 2 x 16Gb FC Ports for HA RAID Arrays
- 10-Core (Standard) to 28-Core (Optional) Xeon Processor
- Support upto 4440 SAS drives or SSDs with EBODs
- 32GB per Node (Standard) to 512GB per node (Optional) System Memory
- 256GB (Standard) to 3.8TB (Optional) NVMe SSD for OS
Note: DR365V-HA cluster appliances have 2 x HCI controllers + one or more HA RAID arrays. The supported XS-Series HA RAID arrays are listed under.
For customization options, contact StoneFly sales.
DR365V-HA Appliances: XD-Series
2 x 1U HCI Controller
- Choice of 2 x 12Gb SAS Ports or 2 x 16Gb FC Ports for HA RAID Arrays
- Dual 10-Core (Standard) to Dual 28-Core (Optional) Xeon Processor
- Support upto 1776 SAS drives or SSDs with EBODs
- 64GB per Node (Standard) to 1TB per node (Optional) System Memory
- 240GB (Standard) to 1.9TB (Optional) SSD for OS
2 x 2U HCI Controller
- Choice of 2 x 12Gb SAS Ports or 2 x 16Gb FC Ports for HA RAID Arrays
- Dual 10-Core (Standard) to Dual 28-Core (Optional) Xeon Processor
- Support upto 4440 SAS drives or SSDs with EBODs
- 64GB per Node (Standard) to 1TB per node (Optional) System Memory
- 256GB (Standard) or 3.8TB (Optional) NVMe SSD for OS
Note: DR365V-HA appliances have 2 x HCI controllers + one or more HA RAID arrays. The supported XD-Series HA RAID arrays are listed under.
For customization options, contact StoneFly sales.
Supported HA Expansion Arrays and Storage Expansion Units
DR365V-HA appliances support a range of expansion arrays / RAID subsystems:
- 12 x 3.5” 2U High IOPS HA RAID Expansion Array – 12Gb SAS or 16Gb FC
- 16 x 3.5” 3U High IOPS HA RAID Expansion Array – 12Gb SAS or 16 Gb FC
- 24 x 3.5” 4U High IOPS HA RAID Expansion Array – 12Gb SAS or 16Gb FC
- 24 x 2.5” 2U High IOPS HA RAID Expansion Array – 12Gb SAS or 16 Gb FC
Supported expansion units for the DR365V-HA cluster appliances include:
- 12 x 3.5” 2U HA Expansion Unit – 12Gb SAS
- 16 x 3.5” 3U HA Expansion Unit – 12Gb SAS
- 24 x 2.5” 2U HA Expansion Unit – 12Gb SAS
- 60 x 3.5” 4U HA Expansion Unit – 12Gb SAS, Single Drawer
- 60 x 3.5” 4U HA Expansion Unit – 12Gb SAS, Three Drawer
12 Bay
16 Bay
12 Bay
16 Bay
24 Bay
24 Bay
60 Bay
Built-in Veeam Cloud Connect Backup
The DR365V has built-in cloud connect backup with the ability to replicate Virtual Machines (VMs), iSCSI, and NAS volumes directly on Azure, AWS, StoneFly private cloud, and S3 compatible clouds.
Users can choose to setup synchronous replication on private clouds or asynchronous replication to public clouds for additional redundancy, high availability, and instant recovery.
Reduce the time to recovery, enhance business continuity, and offload backup data with the built-in cloud connect backup feature.
Replicate to Offsite Backup Appliance Clusters or the Cloud
DR365V enables users to synchronously replicate to secondary DR365V mirror appliances or asynchronously replicate to offsite or cloud backup tiers.
The Veeam backup and replication appliance enables users to protect iSCSI, NAS, and VMs.
Users can choose to recover by spinning up VMs directly in public or private clouds, or directly on the DR365V backup appliance.
NAS Backup Support (No Agents Needed)
No need to install Veeam agents on NAS systems for backup!
Now you can add NAS devices directly through the Veeam console and configure backups for NFS (Linux) and CIFS/SMB (Windows) file servers. This enables you to save costly resources and protect important unstructured data in a hassle-free process. You can store these NAS backups on the DR365V appliance or provision blob or S3 storage in Azure or AWS respectively and store the backup files in your choice of cloud.
Data Integration
Make the most of your backup data
Conventionally, backup files consume storage space until they’re used for recovery; and that’s all they do. Now, you can fully use your backup data with the data integration API.
Data integration enables you to extract virtual disks, as iSCSI volumes, from any VM backup file. You can mount these iSCSI volumes on any target iSCSI client. This iSCSI client can be the DR365V appliance, StoneFly ISC SAN or Voyager cluster SAN appliances, or a SAN volume deployed in the cloud.
With the ability to extract virtual disks from backup file and mount them as iSCSI volumes, you can truly leverage your data. You can run resource-intensive applications and code on another iSCSI client which enables you to get the most out of your data without affecting your primary production environment.
Air Gapped Backup Repository
Detachable NAS Volumes
Configure detachable NAS volumes with StoneFly SCVM and store backup copies in a virtual NAS that can be turned on and off at user’s discretion. The ability to control when the virtual NAS comes on or is turned off really puts the user in control and makes it a great fit for sensitive and confidential data storage.
As the provisioned NAS volumes are detachable, users can effectively protect mission-critical backup copies by storing secondary or tertiary copies in the volumes. This way, even if the primary copies are compromised due to threats like ransomware, malware, human error, etc. there’s still a secondary copy that can be used to recover the data.
Air Gapped repositories add an additional layer of security for workloads that simply cannot be lost or compromised.
Backup Vault
Isolated Linux Based Virtual Appliance
The backup vault is a highly secure Linux based virtual appliance that runs on an isolated network. The virtual appliance is inaccessbile to all applications, services, and programs running on the main production network. The virtual appliance replicates, either in real-time or asynchronously (user-defined), the primary or source volume / backup repository. This creates two redundant volumes with the backup data.
In the event of a ransomware attack, malware, accidental or malicious deletion, etc. the backup vault provides an unhindered redundant copy that can be used to restore data. It’s best fit for users looking to have more than one copy to rely on in the event of a disaster.
Immutable / WORM Storage
Compliant & Secure Backup Repositories
Leverage the familiar Veeam console to provision highly secure and compliant WORM (Write-Once Read-Many) storage repositories for long term backup data storage.
DR365V enables users to provision local backup repositories on the backup and DR appliance and provision object storage repositories in public clouds like Azure, AWS, or in StoneFly private cloud. The object storage volumes can be configured as immutable or WORM storage repositories.
Users can configure the backup and DR solution to store backup data for shorter period of time on local repositories while backup copies are retained on the immutable object storage repositories for several months or years. The WORM storage repositories simplify compliance and ensure data protection of mission-critical backup files from threats such as ransomware attacks, virus infection, human error, malicious deletion, etc.
Threat Scan for Backup Data
Scan your Backup Data for Dormant Threats & Ensure Data Integrity with Ease!
StoneFly SCVM supports an advanced scanning feature that enables users to scan their backup data for dormant threats such as ransomware, virus, & malware. Several malicious applications have exhibited this pattern: they lie dormant on the production server to detect target repositories and after a few months, they not only attack the primary production environment but also target repositories and backup repositories.
This advanced feature enables users to detect such threats before they attack and enables them to take pre-emptive action based on frequent reports. To simplify the user experience, SCVM enables users to schedule these checks and generate reports that are sent to pre-defined emails.
With this advanced threat detection feature, users ensure the integirty of mission-critical backup data and effectively protect their environments from engineered threats.
Back up SAP Hana Data on our Veeam-Ready Backup & Replication Appliance
Back up entire SAP Hana server or workstation on the DR365V. The DR365V automatically converts backups to Virtual Machines (VMs) so that they can be instantly spin up and recovered without delay.
SAP Hana data is important and our backup solution makes sure that you regain access to it within 15 minutes of losing the server or workstation. With data services such as delta-based snapshots, replication, and volume encryption to make sure you have multiple ways to recover your data and ensuring business continuity and data availability.
By leveraging our bare-metal restore options, users can recover on similar or dissimilar hardware. The DR365V also facilitates VM spin up on a different hypervisor.
For instant recovery, users can also choose to spin up SAP Hana VMs directly on public clouds such as Azure, AWS, or to StoneFly private cloud or any other S3 compatible cloud.
Interested in Our Enterprise-Grade Veeam-Ready Backup & Replication Solution?
Want To Know How it Works? Watch The Videos or Read Blogs
Download StoneFly DR365V Brochures
Veeam Availability Suite Editions comparison The award-winning StoneFusion® Network Storage Platform (NSP), StoneFly’s patented storage networking operating system architecture, brings in block level storage intelligence to the IP network core. Featuring iSCSI, Fibre Channel and Scale Out NAS technologies, StoneFly delivers all the benefits of enterprise managed SANs.
