Purpose-Built

HYCU Integrated Air-Gapped and Immutable Backup and DR Solution

The DR365H is a fully integrated backup and disaster recovery solution powered by HYCU and StoneFly’s patented software-defined storage. Built for virtual, physical, and cloud workloads, DR365H delivers agentless, application-aware backups, instant recovery, and ransomware-proof protection with built-in Air-Gapped Vault® and immutable object and file storage—no third-party tools or manual workflows needed.

✅ Unified backup, recovery & DR
✅ Agentless & application-aware
✅ Immutable & air-gapped for ransomware protection

Fill out this form to get a demo, free trial, or more information

StoneFly + HYCU: Engineered for Secure, Fast Recovery

DR365H is an all-in-one backup and disaster recovery solution that combines StoneFly’s enterprise-grade software-defined storage with HYCU’s agentless, application-aware data protection—designed to secure your data, simplify operations, and ensure fast, predictable recovery.

Built for modern IT environments, DR365H protects virtual machines, physical servers, and cloud workloads without installing agents. Backups are application-consistent, policy-driven, and fully automated—ensuring data integrity without operational overhead.

Security is built into every layer of DR365H. Backups are stored in immutable volumes, air-gapped by design, and isolated from threats using StoneFly’s patented features. Whether recovering a single file or entire systems, DR365H delivers rapid, ransomware-proof recovery when you need it most.

Application-Aware, Agentless, Ransomware-Proof and Always Recoverable

DR365H delivers a fully integrated backup and disaster recovery experience—combining the simplicity of an appliance with the intelligence of agentless, application-aware protection.

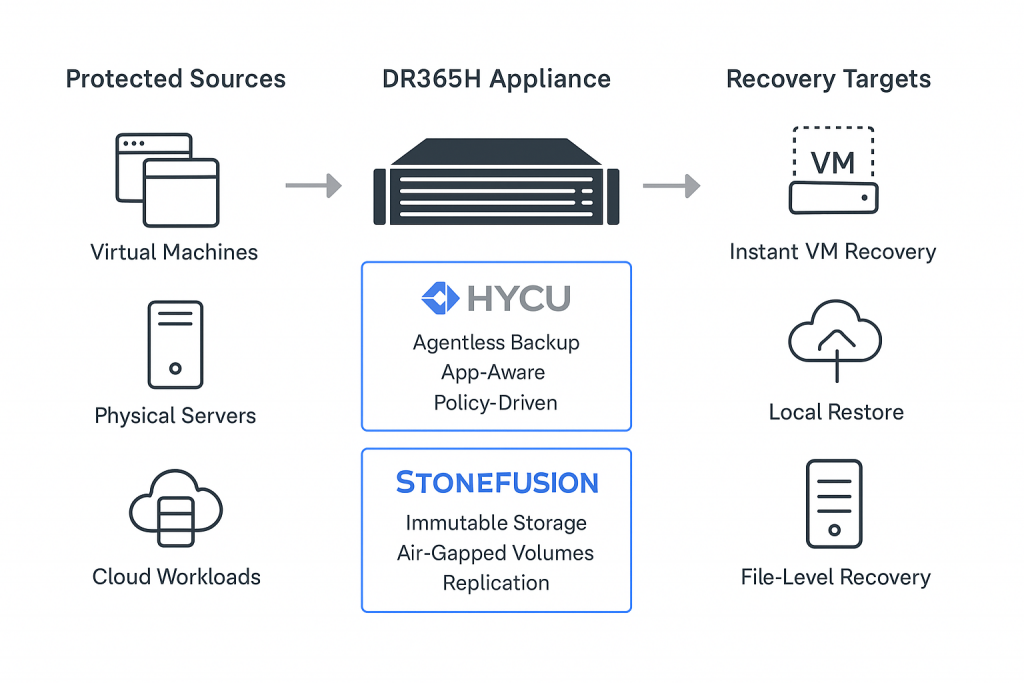

How DR365H Delivers End-to-End Backup & Disaster Recovery

The StoneFly DR365H is a fully integrated, turnkey backup and disaster recovery solution that combines StoneFly’s enterprise-grade storage virtualization with HYCU’s agentless, application-aware data protection—all hosted directly on the DR365H appliance. With HYCU running natively on the system, there’s zero latency between the data protection engine and the storage layer, enabling faster backups, instant recovery, and streamlined operations.

Built-in Multi-Layered Ransomware Protection

At the core of DR365H is StoneFly’s patented air-gapped and immutable storage vault, which sets this solution apart:

Air-Gapped vaults can be configured either logically (automated isolation) or physically (isolated hardware), preventing ransomware or unauthorized access from reaching backup copies.

All air-gapped data is also immutable, meaning it cannot be altered, encrypted, or deleted—ensuring the integrity and recoverability of your backups.

This combination of agentless backups, application awareness, immutability, and air-gapping delivers unmatched resilience against ransomware and insider threats.

The DR365H is more than a backup appliance—it’s a fully integrated disaster recovery platform that unifies backup, storage, security, and rapid restore in a single solution. From backup to spin-up, it’s built for speed, simplicity, and peace of mind.

DR365H Key Features:

Enterprise Data Protection & Storage Capabilities

Air-Gapped and Immutable Backups

Patented StoneFly air-gapped vault technology ensures backup data is isolated—physically or logically—and immutable, blocking unauthorized access and ransomware encryption attempts.

Immutable Storage

Backed-up volumes and files are locked from changes for defined retention periods, ensuring compliance and protection from tampering or deletion.

Immutable Snapshots

Schedule point-in-time snapshots that cannot be altered or deleted until expiration, providing reliable recovery rollback options.

Volume Deletion Protection

Prevents accidental or malicious deletion of active or archived volumes with enforced policy-based controls.

Threat Detection and Response

Integrated anomaly detection alerts admins to suspicious behaviors and supports automated remediation workflows for fast containment and recovery.

Secure Connect Fabric

Enables agentless, encrypted backup and recovery for remote and branch office workloads via a secure, policy-driven overlay network.

Hardware-Based Encryption

AES 256-bit encryption at rest and SSL/TLS in transit ensures compliance-grade data security without impacting system performance.

Deduplication

Block-level, inline and post-process deduplication reduces backup storage footprint and optimizes WAN/Cloud bandwidth usage.

Thin Provisioning

Efficiently allocates storage on-demand to reduce unused capacity and improve overall resource utilization.

Direct VM Spin Up

Instantly boot VMs on the DR365H appliance for near-zero RTO and seamless disaster recovery—no need to wait for full restores.

Anti-Ransomware Scanner

Continuously monitors backup data for ransomware signatures and anomalies, enabling early threat detection and faster response.

Sync/Async Replication

Built-in support for synchronous and asynchronous replication across local, remote, and cloud targets for flexible disaster recovery.

Comprehensive Backup and Disaster Recovery for

Virtual, Physical & Cloud Platforms

The DR365H with HYCU provides comprehensive, agentless protection across a wide spectrum of environments—virtual, physical, cloud, and hybrid—ensuring seamless data protection and disaster recovery for diverse IT infrastructures.

Virtual Environments

VMware vSphere (6.5, 6.7, 7.0)
Nutanix AHV (AOS 5.20, 6.5, 6.5.1)
Microsoft Hyper-V

Public Clouds

Microsoft Azure (including Azure Government and Azure China)
Amazon Web Services (AWS), including AWS GovCloud and AWS China
Google Cloud Platform (GCP)

File Servers & NAS

Nutanix Files (SMB and NFS protocols)
Dell EMC PowerScale (OneFS 8.2.1–9.4.0.0)
QStar (NFS and SMB protocols)

Physical Servers

Windows Server (2012, 2012 R2, 2016, 2019, 2022).
Linux Distributions:

Red Hat Enterprise Linux (7.x, 8.x)
CentOS (7.x, 8.x)
Oracle Linux (7.x, 8.x)
SUSE Linux Enterprise Server (12, 15)

Object Storage

Wasabi
Cloudian
Scality
MinIO
Tencent Cloud
Alibaba Cloud
Amazon Snowbal

Applications (with Application-Aware Protection)

Microsoft SQL Server (2012, 2014, 2016, 2017, 2019)
Microsoft Exchange Server (2013, 2016, 2019)
Microsoft Active Directory (including various roles such as Domain Services, Certificate Services, Federation Services)
Oracle Database (12c, 19c)
SAP HANA (2.0 SPS 03, 2.0 SPS 04)

Improve Your DR365H Deployment: Add-Ons & Upgrades

Cloud Connect

Extend your backups to the cloud with native integration for Azure, AWS, and StoneFly Cloud. Achieve scalable, offsite storage and DR with built-in security.

Disaster Recovery as a Service (DRaaS)

Get enterprise-grade business continuity without the overhead. Spin up critical workloads in the cloud during outages with fully managed DRaaS.

Remote Professional Services

Accelerate deployment and maximize ROI with StoneFly’s expert guidance. Our remote services cover planning, configuration, optimization, and ongoing support.

Physical Air-Gapped Vaults

While logical air-gapped and immutable vaults are included, you can optionally add purpose-built physical air-gapped nodes for an extra layer of isolated, ransomware-proof backup security.

Available DR365H Hardware Configurations

Single Node

8 to 108-bay turnkey appliances with active/active RAID controller.

Dual Node

Dual clustered backup appliances and automated failover and failback for high availability.

Scale Out

Start with three backup appliances & scale out to as many nodes as you need – increasing performance and capacity in multiples.

High Availability

Start with three backup appliances & scale out to as many nodes as you need – increasing performance and capacity in multiples.

Integrated Dual Hardware Controller Appliance (R2)

The R2 appliance integrates dual hardware controllers within a single-node architecture to deliver two isolated environments—one for the HYCU backup server and the other for secure, ransomware-proof target storage. This setup mirrors the experience of running dedicated appliances while minimizing hardware footprint. Each controller operates independently, creating segmented security zones to protect enterprise workloads and data. The result is a high-availability HYCU backup solution that enhances both performance and security in a unified platform.

The secondary controller offers versatile configurations, acting as a recovery module with built-in air-gapped and immutable storage for backup, replication, and archival. It supports up to 64 immediate restore points for rapid recovery, click-to-restore VM capabilities, and automated failover for business continuity. Administrators can also leverage the secondary environment as a secure sandbox for DevOps or backup testing—ensuring clean recoveries without disrupting production systems.

Compact High Performance Mini Appliance

The DR365H appliance brings the full power of StoneFly’s enterprise-grade backup and disaster recovery platform into a compact, high-performance, and secure form factor. Designed for HYCU integration, the DR365H features a 13th Gen Intel® processor, up to 96GB of memory, dual-channel 20/40Gbps storage connectivity, multiple 10Gb SFP+ ports, NVMe for hot-tier performance, and optional external NVMe and disk expansions.

With support for disk and SAS RAID expansion, the DR365H scales to meet growing backup and recovery demands while ensuring data resilience and speed. Whether deployed for remote sites, branch offices, or edge environments, it delivers efficient, agentless, and ransomware-proof data protection in a turnkey appliance.

FlexStor ScaleHA™: Cloud-Scale HYCU Backup and DR MSP Data Center Infrastructure

FlexStor ScaleHA™ is a disaggregated, high-performance, and ransomware-resilient configuration of the DR365H, purpose-built for MSPs and large enterprises. It delivers unified backup, instant recovery, and immutable storage across SAN, NAS, and object workloads—engineered for scale-out growth, air-gapped protection, and always-on availability.

With modular nodes acting as building blocks, FlexStor ScaleHA empowers IT teams to custom-build their backup and DR infrastructure with the precise performance, security, capacity, and connectivity they need—whether for a single site or a globally distributed environment.

The architecture consists of the following components:

Two, or more, Controller Directors – each with active/active storage virtualization engine and SAN, NAS, and object storage support
2x 10, 20, 40, 100, 400 Gbps network support
8, 12, 16, 24, 36, and 60-bay single, dual, or scale out appliances – as many as needed
Optional 12, 16, 24, 36, 60, and 108-bay storage expansion units – up to 256 drive support per node.

Each appliance node can be set up as:

HYCU backup and DR appliance
Air-Gapped Vault and immutable storage
Always On-Air Gapped backup appliance
Immutable FileLock
Immutable object storage
Regular backup data storage – read, write, delete, overwriting enabled
Sandbox appliance for backup and DR testing
Secondary DR site

Available Appliance Series

XS-Series

8 to 108-bay appliances with high performance multi-core Xeon processors, high speed network ports, built-in RAID controller, and enterprise NVMe SSDs and/or SAS drives.

XD-Series

8-bay to 108-bay appliances with high performance multi-core dual Xeon processors, high speed network ports, built-in RAID controller, and enterprise NVMe SSDs and/or SAS drives.
